Product CatalogPart Number
MPD-810H
Manufacturer
Magic PowerDescription
DC-DC ATX PSU, 85W convection, 1
Datasheet
DatasheetPackage
-
In Stock
71,900 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MPD-810H
MPD-810H
lmages are for reference only.Payment Methods
Delivery Services
Open Frame DC DC Converter 4 Output 5V 3.3V 12V -12V 1A, 4A, 8A, 10A 30V Input
Quick Inquiry
MPD-810H
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - DC DC Converters - |
| Manufacturer | Magic Power |
| Series | MPD-810H (120W) |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Open Frame |
| Voltage - Input (Min) | 10V |
| Voltage - Input (Max) | 30V |
| Number of Outputs | 4 |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 3.3V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | -12V |
| Current - Output (Max) | 1A, 4A, 8A, 10A |
| Power (Watts) | 136W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 70% |
| Operating Temperature | 0°C ~ 50°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.00" L x 3.30" W x 1.50" H (152.4mm x 83.8mm x 38.1mm) |
| Approval Agency | CSA, UL, VDE |
| Standard Number | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

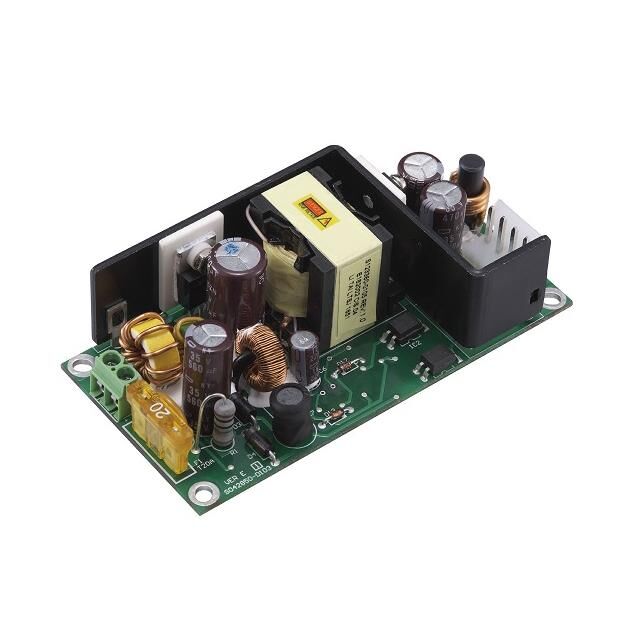

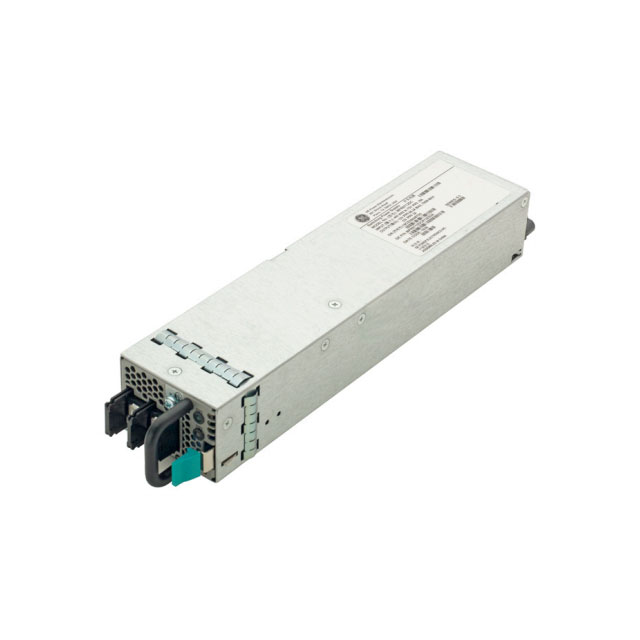

| Part Number | MPD-S103 | MPR0712DCR12Z02A | VI-L70-MX | 1/4A24-P20-25PPM-F-C |
| Manufacturer | Magic Power | OmniOn Power™ | Vicor Corporation | ULTRAVOLT / Advanced Energy |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC-DC converter, 70W convection, | DC/DC CONVERTER 12V 700W | DC/DC CONVERTER 5V 75W | DC/DC CONVERTER 250V 20W |
| Series | MPD-S100 (100W) | MPR0712DCR12Z02A (700W) | MegaMod™ (50 ~ 200W) | Ultravolt® A |
| Packaging | Bulk | Box | Bulk | Bulk |
