MPDRX303S
lmages are for reference only.MPDRX303S
DC DC CONVERTER 1.6-3.63V 95W
Datasheet20-SMD Module
67,936 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 1.6 ~ 3.63V 26A 5.6V - 14V Input
MPDRX303S
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | MPD |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 5.6V |
| Voltage - Input (Max) | 14V |
| Voltage - Output 1 | 1.6 ~ 3.63V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 26A |
| Power (Watts) | 95 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 91% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-SMD Module |
| Size / Dimension | 1.06" L x 1.06" W x 0.28" H (26.8mm x 26.8mm x 7.0mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | MPDRX |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |

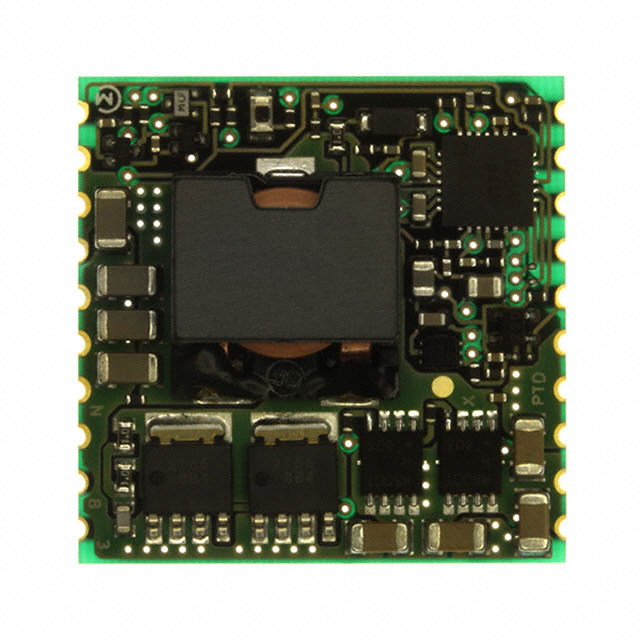

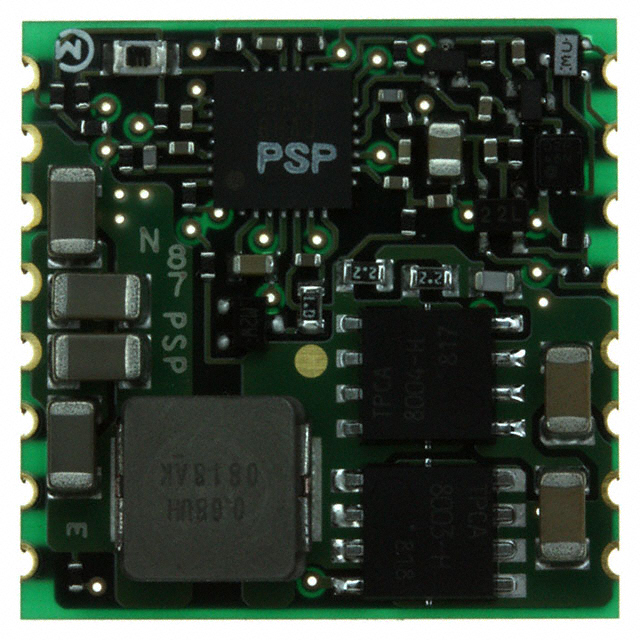

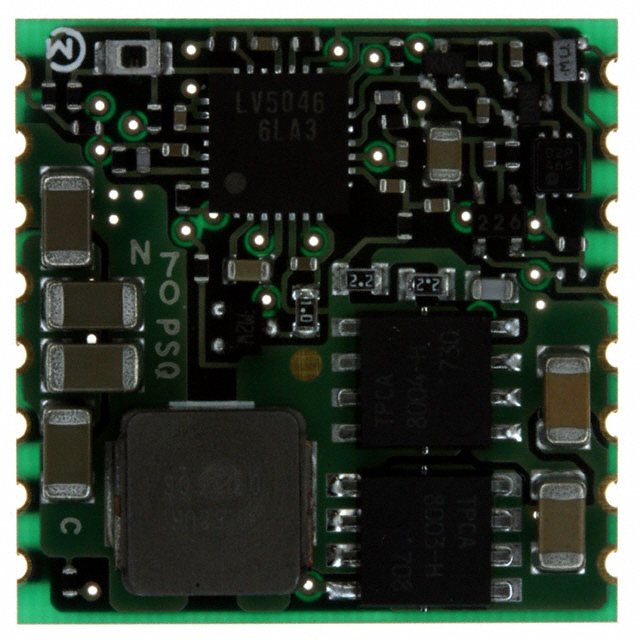

| Part Number | MPDRX301S | MPDRX302S | MPDRX304S | MPDRX307S |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 1.6-3.63V 48W | DC DC CONVERTER 0.8-1.65V 21W | DC DC CONVERTER 0.8-1.65V 43W | DC DC CONVERTER 3.63V 24W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tray | Tray | Tray | Tray |
