MPDTH12050WAS
lmages are for reference only.MPDTH12050WAS
DC DC CONVERTER 1.2-5.5V 33W
Datasheet6-SMD Module
70,904 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 1.2 ~ 5.5V 6A 10.8V - 13.2V Input
MPDTH12050WAS
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | MPD |
| Packaging | Tray |
| RoHS Status | |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 1.2 ~ 5.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6A |
| Power (Watts) | 33 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 93% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD Module |
| Size / Dimension | 0.87" L x 0.49" W x 0.36" H (22.1mm x 12.6mm x 9.1mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | MPDTH12 |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
|

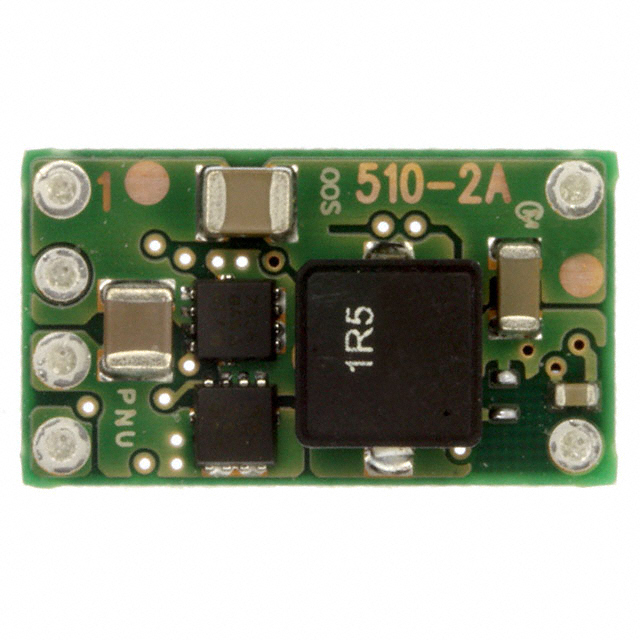

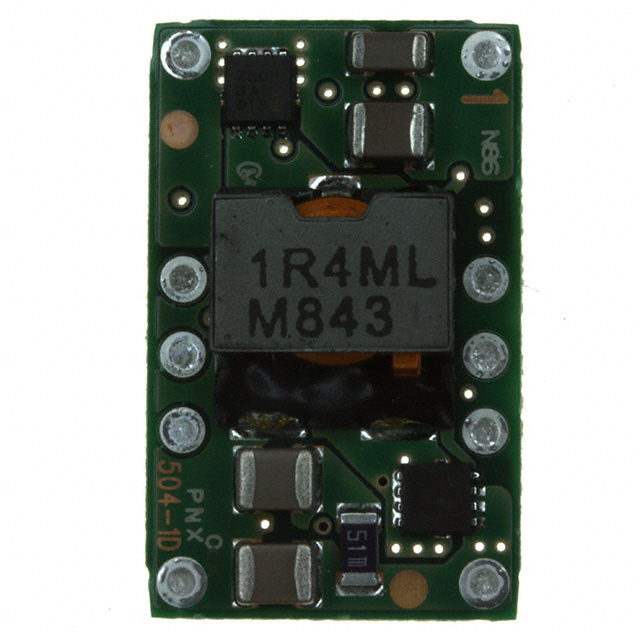

| Part Number | MPDTH12050WAH | MPDTH12060WAH | MPD30-12S12 | MPD30-12S12 |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | P-DUKE Technology | P-DUKE Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | DC DC CONVERTER 1.2-5.5V 33W | DC DC CONVERTER 1.2-5.5V 55W | DC DC CONVERTER 12V 30W | DC DC CONVERTER 12V 30W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | P-DUKE Technology | P-DUKE Technology |
| Packaging | Tray | Tray | Tube | Tube |
