MPH02-12D15

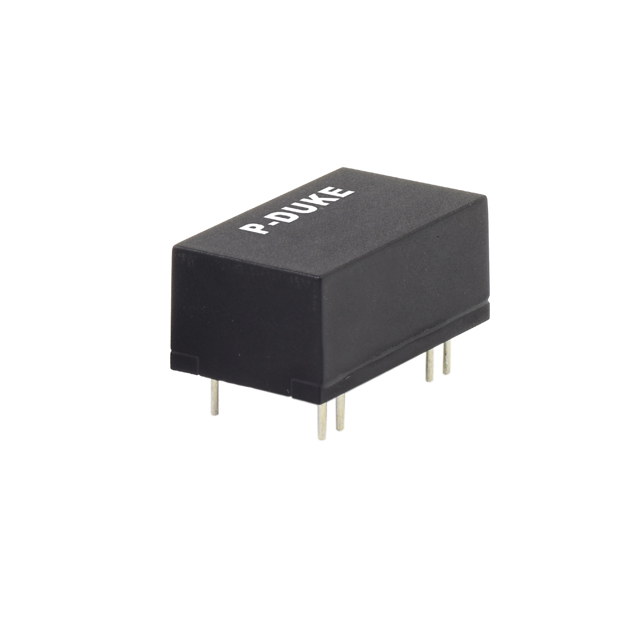

lmages are for reference only.MPH02-12D15
DC DC CONVERTER +/-15V 2W
Datasheet16-DIP Module, 7 Leads
65,118 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 15V -15V 67mA, 67mA 9V - 18V Input
MPH02-12D15
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | P-DUKE Technology |
| Series | MPH02 (2W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 67mA, 67mA |
| Power (Watts) | 2 W |
| Applications | ITE (Commercial), Medical |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 81% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP Module, 7 Leads |
| Size / Dimension | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 5 kV |
| Product Attribute |  |
|
 |
 |
| Part Number | MPH02-05S05 | MPH02-05S05 | MPH02-24D12 | MPH02-24S05 |
| Manufacturer | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 5V 2W | DC DC CONVERTER 5V 2W | DC DC CONVERTER +/-12V 2W | DC DC CONVERTER 5V 2W |
| Series | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology |
| Packaging | Tube | Tube | Tube | Tube |
