Product CatalogPart Number
MPH04-24S15
Manufacturer
P-DUKE TechnologyDescription
DC DC CONVERTER 15V 3.5W
Datasheet
DatasheetPackage
16-DIP Module, 7 Leads
In Stock
37,920 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

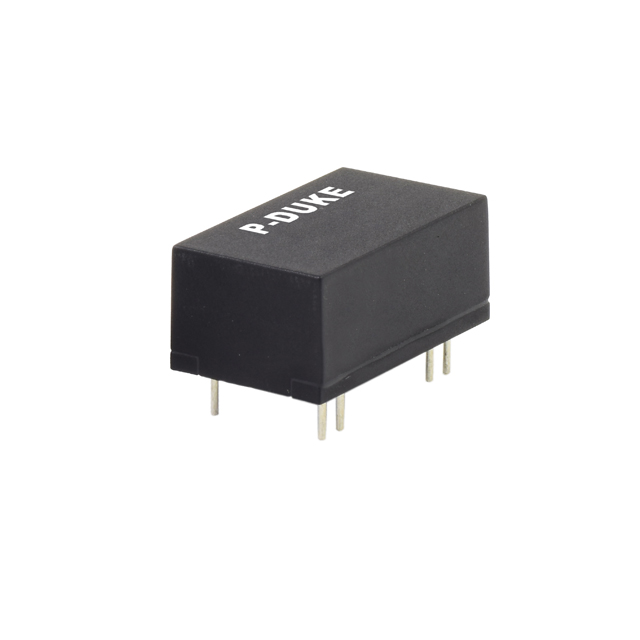

MPH04-24S15
MPH04-24S15
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 15V 234mA 18V - 36V Input
Quick Inquiry
MPH04-24S15
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | P-DUKE Technology |
| Series | MPH04 (3.5W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 234mA |
| Power (Watts) | 3.5 W |
| Applications | ITE (Commercial), Medical |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 83% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP Module, 7 Leads |
| Size / Dimension | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus |
| Standard Number | - |
| Base Product Number | MPH04 |
| Voltage - Isolation | 5 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | MPH04-24D15 | MPH04-24S05 | MPH04-24S24 | MPH04-05S05 |
| Manufacturer | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER +/-15V 3.5W | DC DC CONVERTER 5V 3.5W | DC DC CONVERTER 24V 3.5W | DC DC CONVERTER 5V 3.5W |
| Series | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology |
| Packaging | Tube | Tube | Tube | Tube |
