Product CatalogPart Number
MPI-G503
Manufacturer
Magic PowerDescription
12V/25A 300W convection, 500W wi
Datasheet
DatasheetPackage
-
In Stock
19,781 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MPI-G503
MPI-G503

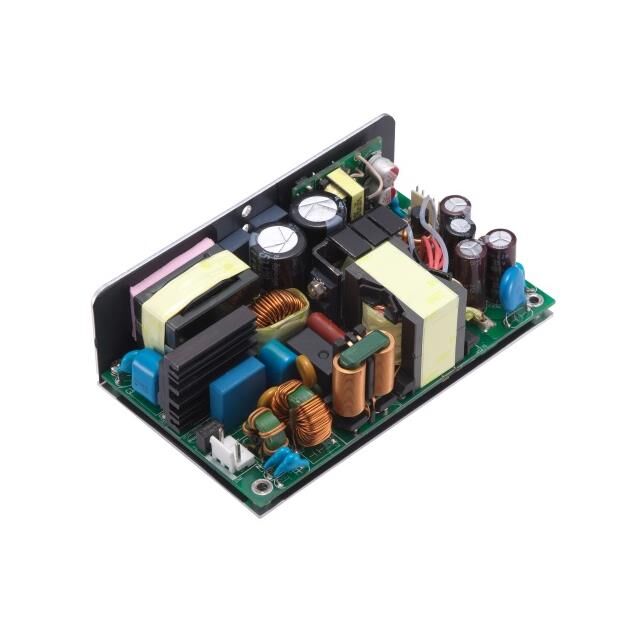

lmages are for reference only.Payment Methods
Delivery Services
Open Frame AC DC Converters 1 Output 12V 80 ~ 264 VAC Input
Quick Inquiry
MPI-G503
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - AC DC Converters - |
| Manufacturer | Magic Power |
| Series | MPI-G503 (500W) |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 41.67 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Applications | Household Appliances, ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 94% |
| Operating Temperature | -20°C ~ 80°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.0mm) |
| Approval Agency | CE, UKCA |
| Minimum Load Required | No |
| Voltage - Output 5 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Power (Watts) | 300W (500W Forced Air) |
| Features | Adjustable Output, Universal Input |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Current - Output 6 | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | MPI-G403 | MPI-G505 | MP-1K0 | MP-450 |
| Manufacturer | Magic Power | Magic Power | MEAN WELL USA Inc. | MEAN WELL USA Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 12V 20.83A 250W convection, 400W | 24V/12.5A 300W convection, 500W | POWER SUPPLY MODULAR | POWER SUPPLY MODULAR |
| Series | MPI-G400 (400W) | MPI-G505 (500W) | * | * |
| Packaging | Bulk | Bulk | Bulk | Bulk |
