MPI4012V2-4R7-R

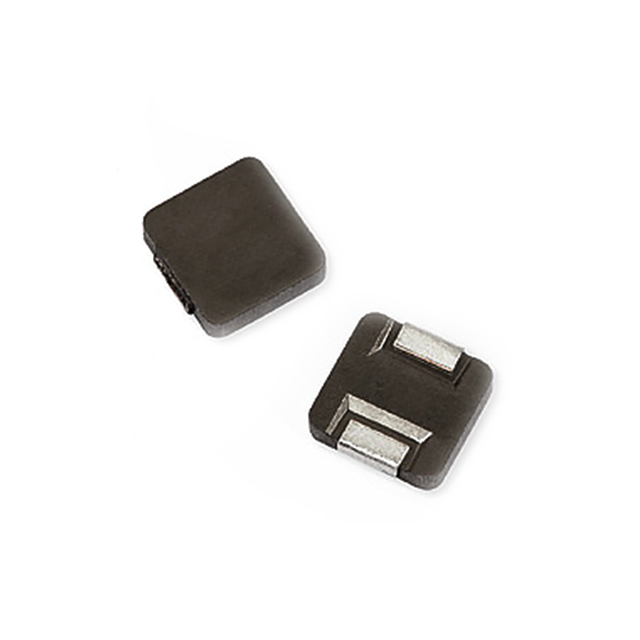

lmages are for reference only.MPI4012V2-4R7-R
FIXED IND 4.7UH 1.8A 210MOHM SMD
DatasheetNonstandard, 2 Lead
37,302 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7 µH Shielded Drum Core, Wirewound Inductor 1.8 A 210mOhm Max Nonstandard, 2 Lead
MPI4012V2-4R7-R
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Eaton - Electronics Division |
| Series | MPI40-V2 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.8 A |
| Current - Saturation (Isat) | 2.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 210mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 29MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 2 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.160" L x 0.171" W (4.06mm x 4.35mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MPI4012V2-1R0-R | MPI4012V2-1R5-R | MPI4012V2-2R2-R | MPI4012V2-R33-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FIXED IND 1UH 4.3A 46.5 MOHM SMD | FIXED IND 1.5UH 3.3A 66 MOHM SMD | FIXED IND 2.2UH 2.9A 90 MOHM SMD | FIXED IND 330NH 7.5A 13.5MOHM SM |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
