MPL-AL4020-R47

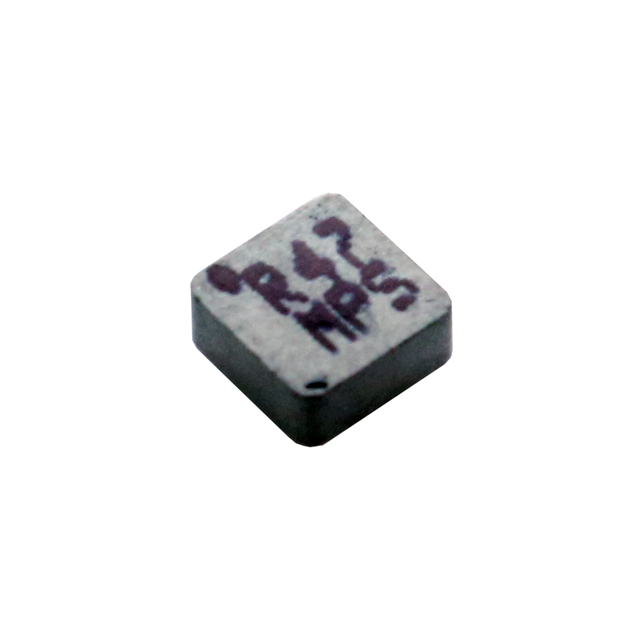

lmages are for reference only.MPL-AL4020-R47
FIXED IND 470NH 9.2A 6.2MOHM SMD
Datasheet2-SMD
34,987 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
470 nH Unshielded Molded Inductor 9.2 A 6.2mOhm 2-SMD
MPL-AL4020-R47
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Monolithic Power Systems Inc. |
| Series | MPL-AL |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | - |
| Inductance | 470 nH |
| Tolerance | - |
| Current Rating (Amps) | 9.2 A |
| Current - Saturation (Isat) | 12.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 6.2mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Supplier Device Package | - |
| Size / Dimension | 0.161" L x 0.161" W (4.10mm x 4.10mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
| Base Product Number | MPL-AL4020 |
| Product Attribute |  |
 |
 |
 |
| Part Number | MPL-AL4020-1R0 | MPL-AL4020-1R2 | MPL-AL4020-1R5 | MPL-AL4020-2R2 |
| Manufacturer | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1UH 7.9A 10.1 MOHM SMD | FIXED IND 1.2UH 7.4A 12.2MOHM SM | FIXED IND 1.5UH 6.4A 14.5MOHM SM | FIXED IND 2.2UH 5.5A 21.5MOHM SM |
| Series | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
