MPM12-100N

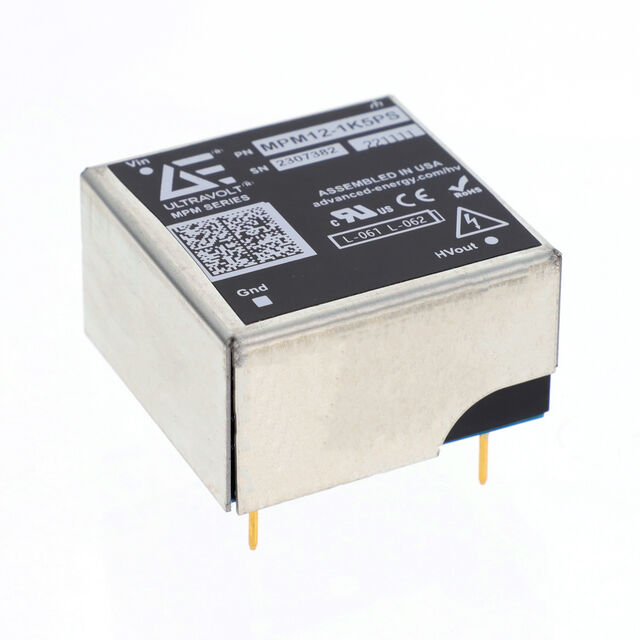

lmages are for reference only.MPM12-100N
DC DC CONVERTER -17 TO -100V 15W
Datasheet4-DIP Module
12,042 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
High Voltage - Isolated Module DC DC Converter 1 Output -17 ~ -100V 15mA 2V - 12V Input
MPM12-100N
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ULTRAVOLT / Advanced Energy |
| Series | MPM |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | High Voltage - Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2V |
| Voltage - Input (Max) | 12V |
| Voltage - Output 1 | -17 ~ -100V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 15mA |
| Power (Watts) | 15 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output |
| Operating Temperature | -10°C ~ 60°C |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP Module |
| Size / Dimension | 1.50" L x 1.50" W x 0.79" H (38.1mm x 38.1mm x 20.1mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | CE |
| Standard Number | - |
| Base Product Number | MPM12 |
| Voltage - Isolation | - |
| Product Attribute | |
|
|
|
| Part Number | MPM12-100NI | MPM12-100NS | MPM12-100NS | MPM12-100NSI |
| Manufacturer | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER -17 TO -100V 15W | DC DC CONVERTER -17 TO -100V 15W | DC DC CONVERTER -17 TO -100V 15W | DC DC CONVERTER -17 TO -100V 15W |
| Series | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy |
| Packaging | Bulk | Bulk | Bulk | Bulk |
