MPP10-24S24WA

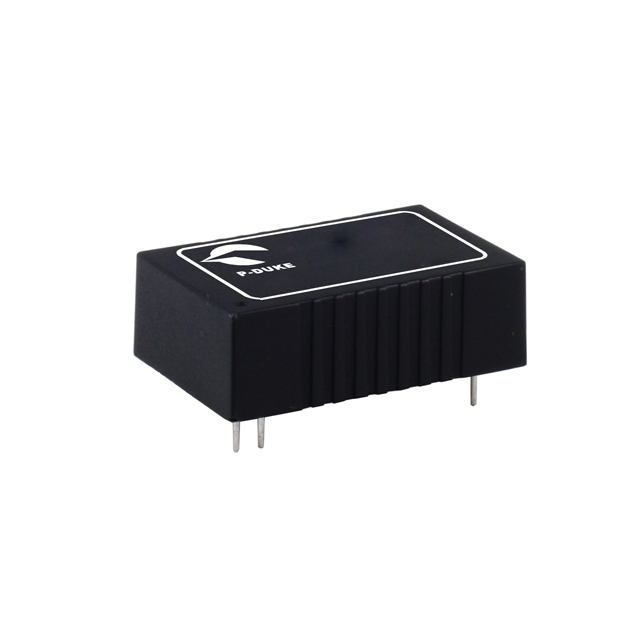

lmages are for reference only.MPP10-24S24WA
DC DC CONVERTER 24V 10W
Datasheet24-DIP Module, 5 Leads
46,804 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 24V 416mA 9V - 36V Input
MPP10-24S24WA
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | P-DUKE Technology |
| Series | MPP10W (10W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 416mA |
| Power (Watts) | 10 W |
| Applications | ITE (Commercial), Medical |
| Features | Adjustable Output |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 89% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 5 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus, FCC |
| Standard Number | - |
| Base Product Number | MPP10 |
| Voltage - Isolation | 5 kV |
| Product Attribute |  |
|
 |
 |
| Part Number | MPP10-24S24WB | MPP10-24S24WB | MPP10-24D05WB | MPP10-24D12WB |
| Manufacturer | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 24V 10W | DC DC CONVERTER 24V 10W | DC DC CONVERTER +/-5V 10W | DC DC CONVERTER +/-12V 10W |
| Series | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology |
| Packaging | Tube | Tube | Tube | Tube |
