MPQ2420AGF-AEC1-P

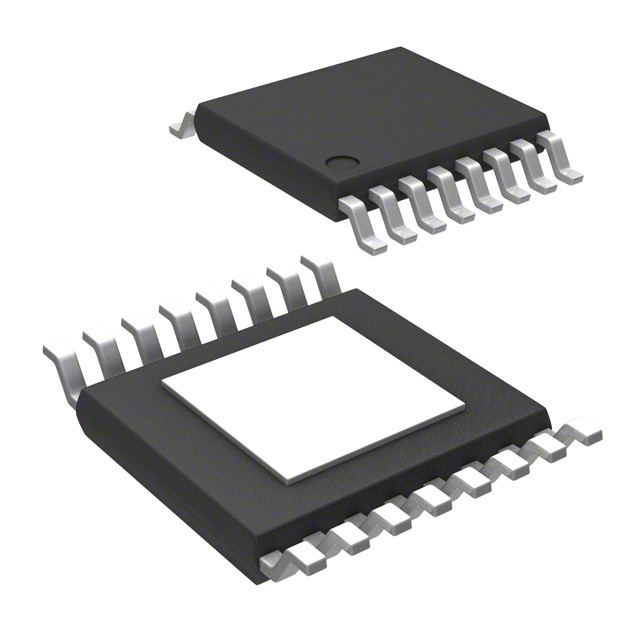

lmages are for reference only.MPQ2420AGF-AEC1-P
IC REG BUCK ADJ 300MA 16TSSOP
Datasheet16-TSSOP (0.173", 4.40mm Width) Exposed Pad
14,455 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Switching Regulator IC Positive Adjustable 1V 1 Output 300mA 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
MPQ2420AGF-AEC1-P
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Monolithic Power Systems Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 75V |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | 67.5V |
| Current - Output | 300mA |
| Frequency - Switching | - |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP |
| Base Product Number | MPQ2420 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | MPQ2420AGF-AEC1-Z | MPQ2420GF | MPQ2420GF-AEC1-P | MPQ2420GF-AEC1-Z |
| Manufacturer | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG BUCK ADJ 300MA 16TSSOP | IC REG BUCK ADJ 300MA 16TSSOP | IC REG BUCK ADJ 300MA 16TSSOP | IC REG BUCK ADJ 300MA 16TSSOP |
| Series | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR) | Tape & Reel (TR) |
