MPQ3798 PBFREE
lmages are for reference only.MPQ3798 PBFREE
TRANS 4PNP QUAD 40V 50MA TO-116
Datasheet14-DIP (0.300", 7.62mm)
62,645 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bipolar (BJT) Transistor Array 4 PNP (Quad) 40V 50mA 60MHz 500mW Through Hole TO-116
MPQ3798 PBFREE
| Category | Discrete Semiconductor Products - Transistors - Bipolar BJT |
| Manufacturer | Central Semiconductor Corp |
| Series | - |
| Packaging | Tube |
| RoHS Status | Request inventory verification |
| Transistor Type | 4 PNP (Quad) |
| Current - Collector (Ic) (Max) | 50mA |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 100µA, 1mA |
| Current - Collector Cutoff (Max) | 10nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 125 @ 10mA, 5V |
| Power - Max | 500mW |
| Frequency - Transition | 60MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | TO-116 |
| Base Product Number | MPQ3798 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |

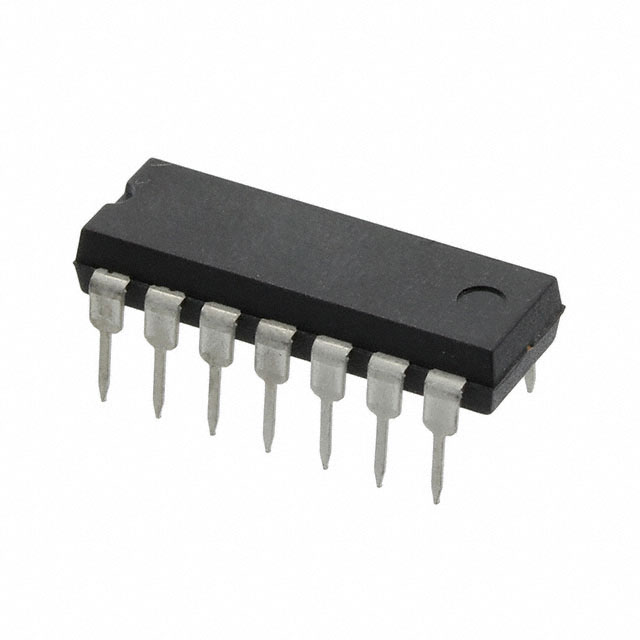

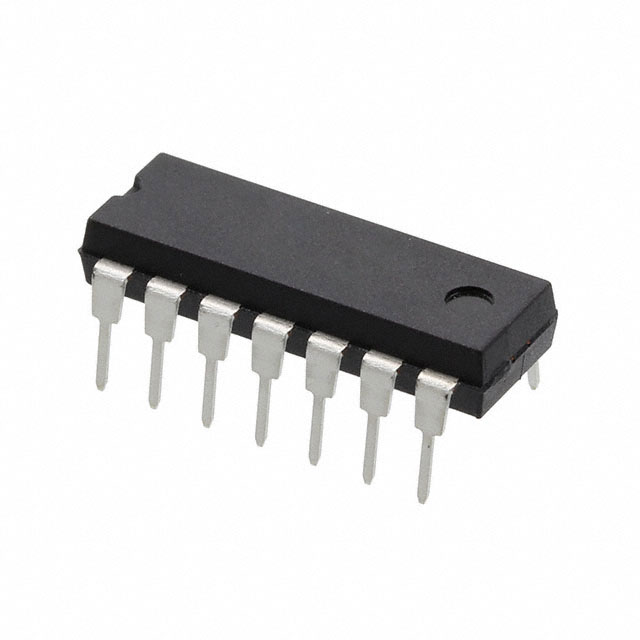

| Part Number | MPQ3467 PBFREE | MPQ3725 PBFREE | MPQ3725A TIN/LEAD | MPQ3762 TIN/LEAD |
| Manufacturer | Central Semiconductor Corp | Central Semiconductor Corp | Central Semiconductor Corp | Central Semiconductor Corp |
| RoHS Status | ROHS3 Compliant | Request inventory verification | RoHS non-compliant | RoHS non-compliant |
| Description | TRANS 4PNP QUAD 40V TO-116 | TRANS 4NPN QUAD 40V 1A TO-116 | TRANS 4NPN QUAD 50V 1A TO-116 | TRANS 4PNP QUAD 40V TO-116 |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
