MPQ4214GU-12-AEC1-Z

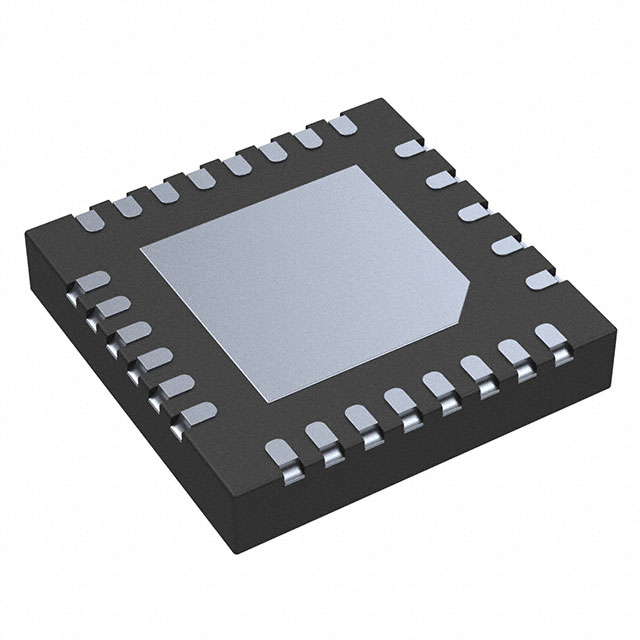

lmages are for reference only.MPQ4214GU-12-AEC1-Z
40V, SYNCHRONOUS BUCK-BOOST CONT
Datasheet27-VFQFN Exposed Pad
32,533 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck-Boost Regulator Positive Output Step-Up/Step-Down I2C DC-DC Controller IC 27-QFN (5x5)
MPQ4214GU-12-AEC1-Z
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Monolithic Power Systems Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Number of Outputs | 1 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 5V ~ 40V |
| Frequency - Switching | 200kHz, 300kHz, 400kHz, 600kHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | I2C |
| Control Features | Current Limit, Dead Time Control, Dimming, Enable, Power Good, Slew Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 27-VFQFN Exposed Pad |
| Supplier Device Package | 27-QFN (5x5) |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
 |
 |
 |
| Part Number | MPQ4214GU-12-AEC1-P | MPQ4214GU-AEC1-P | MPQ4214GU-AEC1-Z | LTC1628IG#TRPBF |
| Manufacturer | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 40V, SYNCHRONOUS BUCK-BOOST CONT | IC REG BUCK-BOOST | IC REG BUCK-BOOST | IC REG CTRLR BUCK 28SSOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
