MPSA42

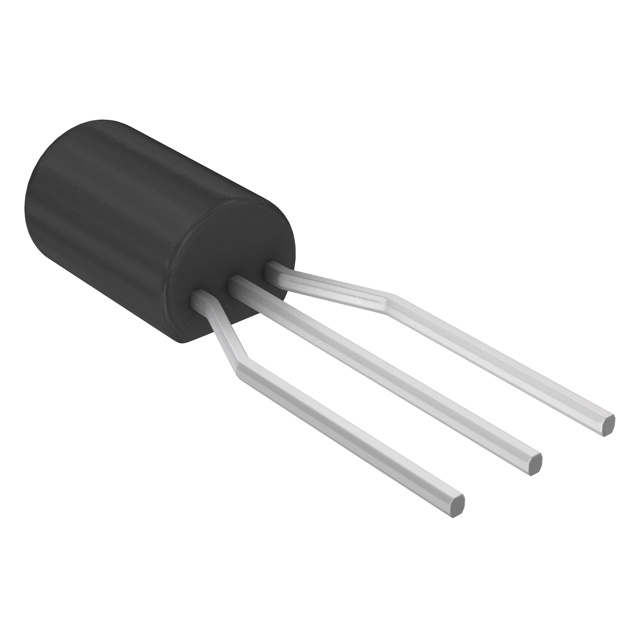

lmages are for reference only.MPSA42
TRANS NPN 305V 0.2A TO-92
DatasheetTO-226-3, TO-92-3 (TO-226AA)
52,534 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bipolar (BJT) Transistor NPN 305 V 200 mA 50MHz 625 mW Through Hole TO-92
MPSA42
| Category | Discrete Semiconductor Products - Transistors - Bipolar BJT |
| Manufacturer | Lumimax Optoelectronic Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 200 mA |
| Voltage - Collector Emitter Breakdown (Max) | 305 V |
| Vce Saturation (Max) @ Ib, Ic | 200mV @ 2mA, 20mA |
| Current - Collector Cutoff (Max) | 0.25µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 1mA, 10V |
| Power - Max | 625 mW |
| Frequency - Transition | 50MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92 |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | | |  |  |
| Part Number | MPSA42 | MPSA42 | MPSA42 TIN/LEAD | MPSA42,116 |
| Manufacturer | onsemi | Diotec Semiconductor | Central Semiconductor Corp | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | Not applicable | RoHS non-compliant | ROHS3 Compliant |
| Description | TRANS NPN 300V 0.5A TO-92-3 | TRANS NPN 300V 0.5A TO-92 | TRANS NPN 300V 0.5A TO-92-3 | TRANS NPN 300V 0.1A TO-92-3 |
| Series | - | - | - | - |
| Packaging | Bulk | Cut Tape (CT)-->Tape & Box (TB) | Bulk | Tape & Reel (TR) |
