MPXV5050DP
lmages are for reference only.MPXV5050DP
SENSOR 7.25PSID 0.13" 4.7V 8SOP
Datasheet8-BSOP (0.475", 12.06mm Width) Dual Ports, Same Side
73,468 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 7.25PSI (50kPa) Differential Male - 0.13" (3.3mm) Tube, Dual 0.2 V ~ 4.7 V 8-BSOP (0.475", 12.06mm Width) Dual Ports, Same Side
MPXV5050DP
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | NXP USA Inc. |
| Series | MPXV5050 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | MPXV5050 |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | 7.25PSI (50kPa) |
| Output Type | Analog Voltage |
| Output | 0.2 V ~ 4.7 V |
| Accuracy | ±2.5% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.13" (3.3mm) Tube, Dual |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | Gull Wing |
| Maximum Pressure | 29.01PSI (200kPa) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-BSOP (0.475", 12.06mm Width) Dual Ports, Same Side |
| Supplier Device Package | 8-SOP |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |

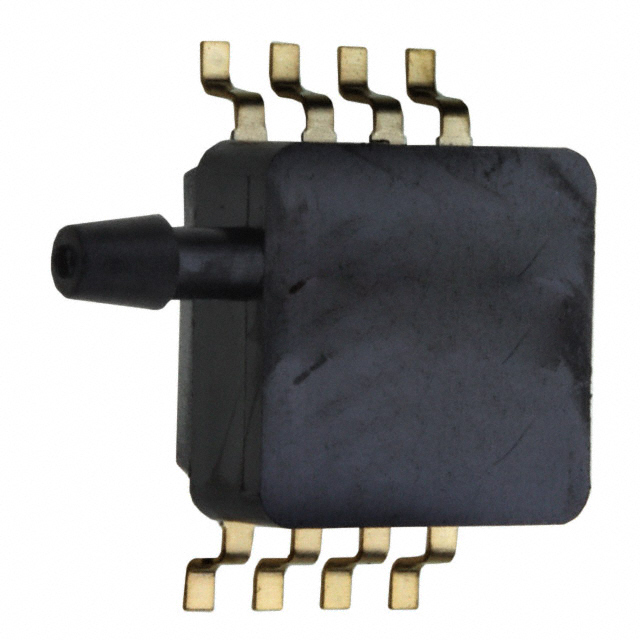

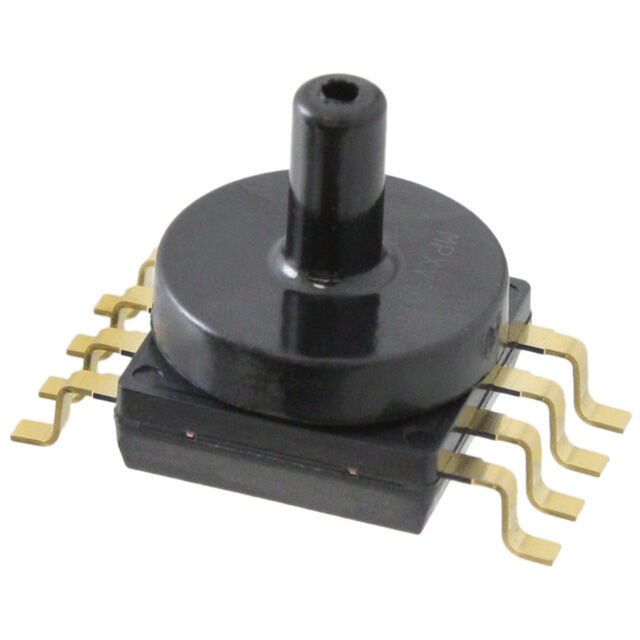

| Part Number | MPXV5050DP | MPXV5050GC6T1 | MPXV5050GC6U | MPXV5050GP |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR 7.25PSID 0.13" 4.7V 8SOP | SENSOR 7.25PSIG 0.13" 4.7V | SENSOR 7.25PSIG 0.13" 4.7V | SENSOR 7.25PSIG 0.13" 4.7V 8SOP |
| Series | MPXV5050 | MPXV5050 | MPXV5050 | MPXV5050 |
| Packaging | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tray |
