MRF422MP

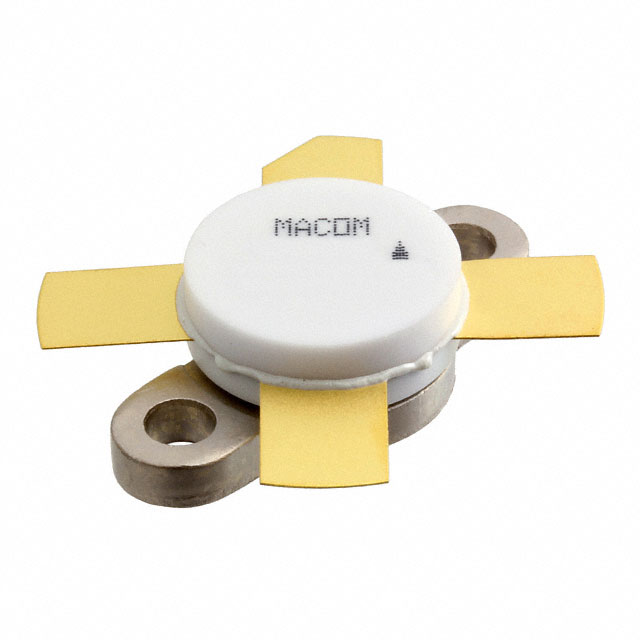

lmages are for reference only.MRF422MP
TRANSISTOR, 150W, 30MHZ,28V,MATC
Datasheet211-11, Style 1
71,876 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Transistor NPN 40V 20A 30MHz 290W Chassis Mount 211-11, Style 1
MRF422MP
| Category | Discrete Semiconductor Products - Transistors - Bipolar BJT |
| Manufacturer | MACOM Technology Solutions |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| Frequency - Transition | 30MHz |
| Noise Figure (dB Typ @ f) | - |
| Gain | 10dB ~ 13dB |
| Power - Max | 290W |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 5A, 5V |
| Current - Collector (Ic) (Max) | 20A |
| Operating Temperature | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Chassis Mount |
| Package / Case | 211-11, Style 1 |
| Supplier Device Package | 211-11, Style 1 |
| Base Product Number | MRF422 |
| Product Attribute |  |
 |
|
|
| Part Number | MRF421 | MRF422 | MRF426 | MRF428 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRANS RF NPN 20V 20A 211-11 | RF TRANS NPN 35V 211-11 | TRANS RF NPN 35V 3A 211-07 | RF TRANS NPN 55V 211-11 |
| Series | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tray |
