Product CatalogPart Number
MRF6S19100HR3
Manufacturer
Freescale SemiconductorDescription
RF MOSFET LDMOS 28V NI780
Datasheet
DatasheetPackage
SOT-957A
In Stock
96,483 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MRF6S19100HR3
MRF6S19100HR3

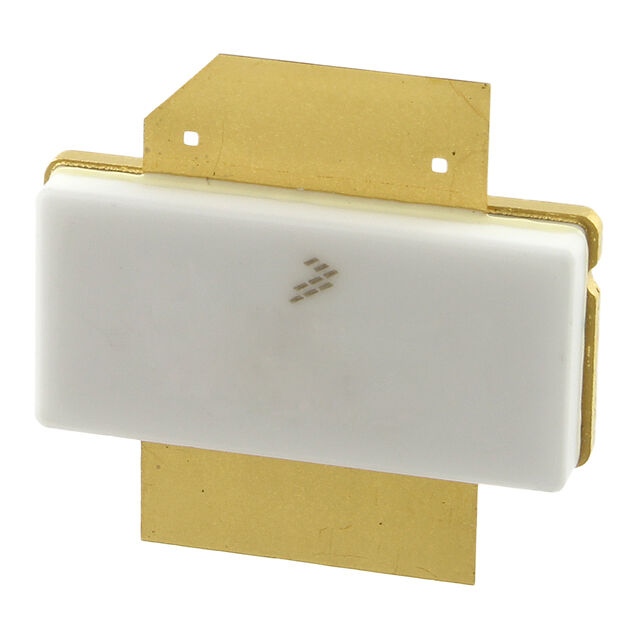

lmages are for reference only.Payment Methods
Delivery Services
RF Mosfet 28 V 900 mA 1.99GHz 16.1dB 22W NI-780H-2L
Quick Inquiry
MRF6S19100HR3
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Freescale Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Technology | LDMOS |
| Configuration | - |
| Frequency | 1.99GHz |
| Gain | 16.1dB |
| Voltage - Test | 28 V |
| Current Rating (Amps) | - |
| Noise Figure | - |
| Current - Test | 900 mA |
| Power - Output | 22W |
| Voltage - Rated | 68 V |
| Mounting Type | - |
| Package / Case | SOT-957A |
| Supplier Device Package | NI-780H-2L |
| Base Product Number | MRF6 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
|
 |
 |
| Part Number | MRF6S19100HR3 | MRF6S19100NBR1 | MRF6S19100NR1 | MRF6S19060NBR1 |
| Manufacturer | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. | Freescale Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF MOSFET LDMOS 28V NI780 | RF MOSFET LDMOS 28V TO272-4 | RF MOSFET LDMOS 28V TO270-4 | RF MOSFET LDMOS 28V TO272-4 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Bulk |
