MRSSH4DR10SMGWTR

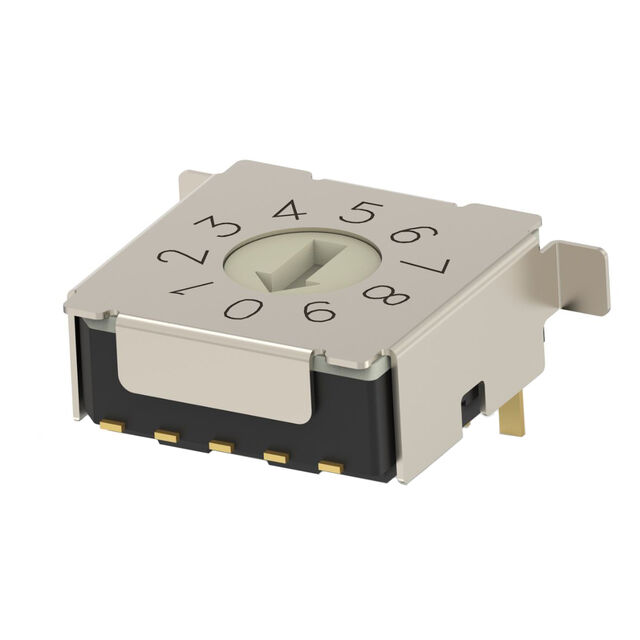

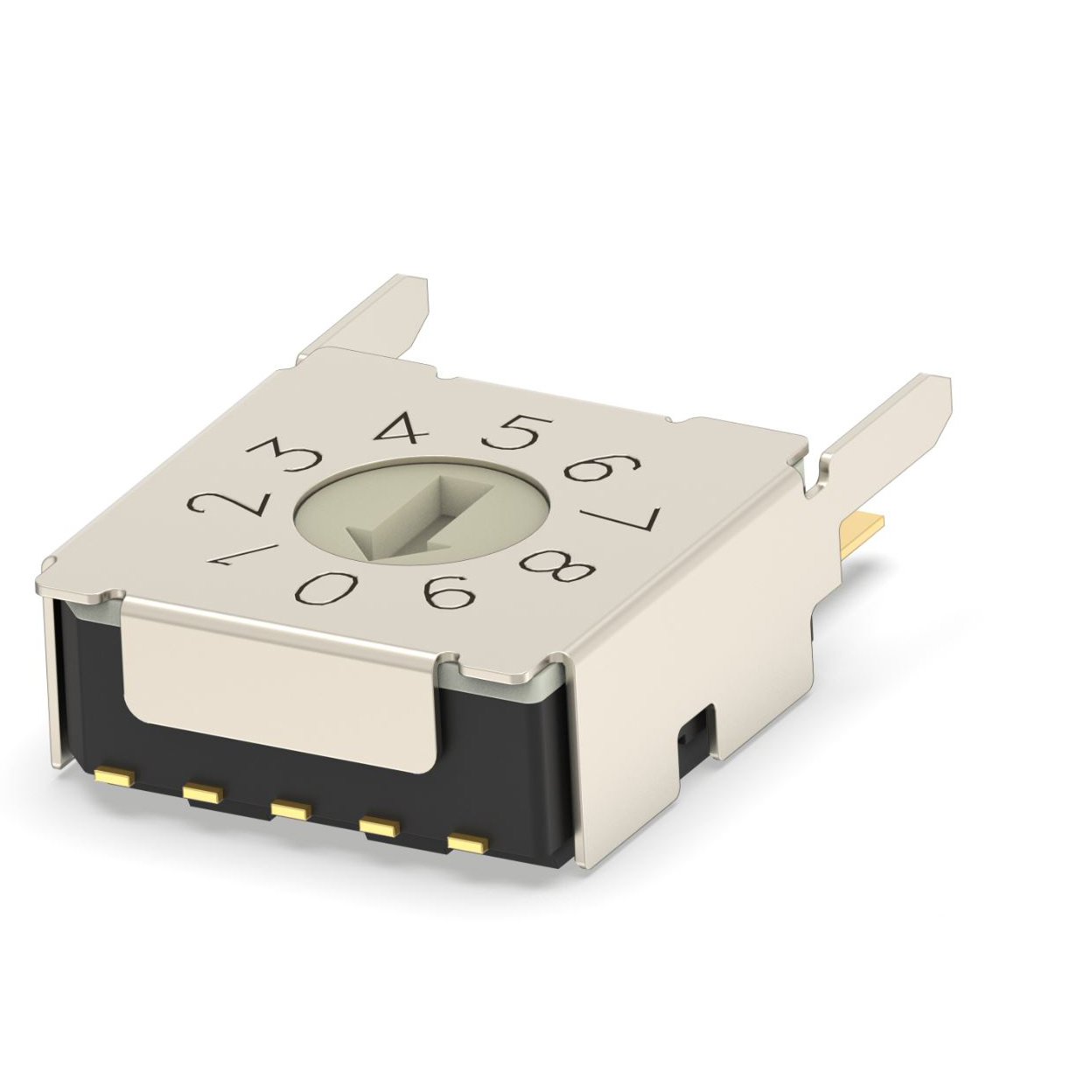

lmages are for reference only.MRSSH4DR10SMGWTR
SWITCH ROTARY DIP BCD 0.4VA 20V
Datasheet-
58,305 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Dip Switch BCD 10 Position Surface Mount, Right Angle Rotary for Tool Actuator 0.4VA 20VAC/DC
MRSSH4DR10SMGWTR
| Category | Switches - DIP Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | MRSS |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Circuit | BCD |
| Number of Positions | 10 |
| Current Rating (Amps) | 0.4VA |
| Voltage Rating | 20VAC/DC |
| Actuator Type | Rotary for Tool |
| Actuator Level | Flush, Recessed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.303" (7.70mm) |
| Mounting Type | Surface Mount, Right Angle |
| Termination Style | Gull Wing |
| Pitch | 0.050" (1.27mm), Half |
| Washable | No |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Body Material | Polyphenylene Sulfide (PPS) |
| Length | 0.303" (7.70mm) |
| Mechanical Life | 10,000 Steps |
| Electrical Life | 10,000 Steps |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

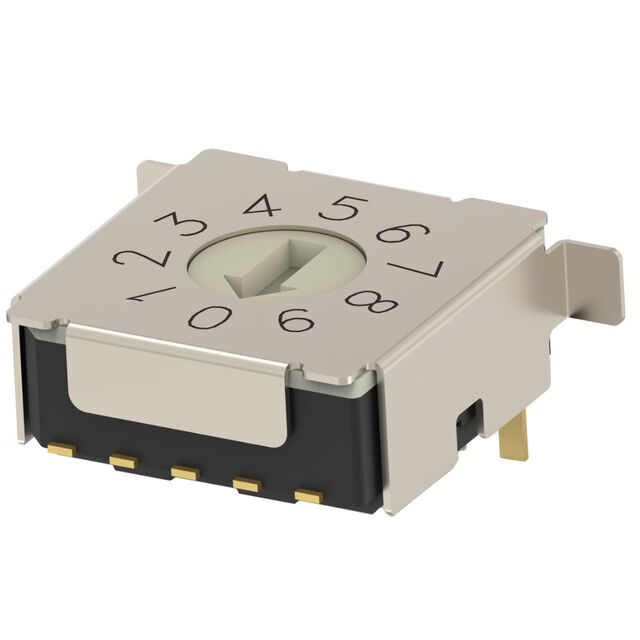

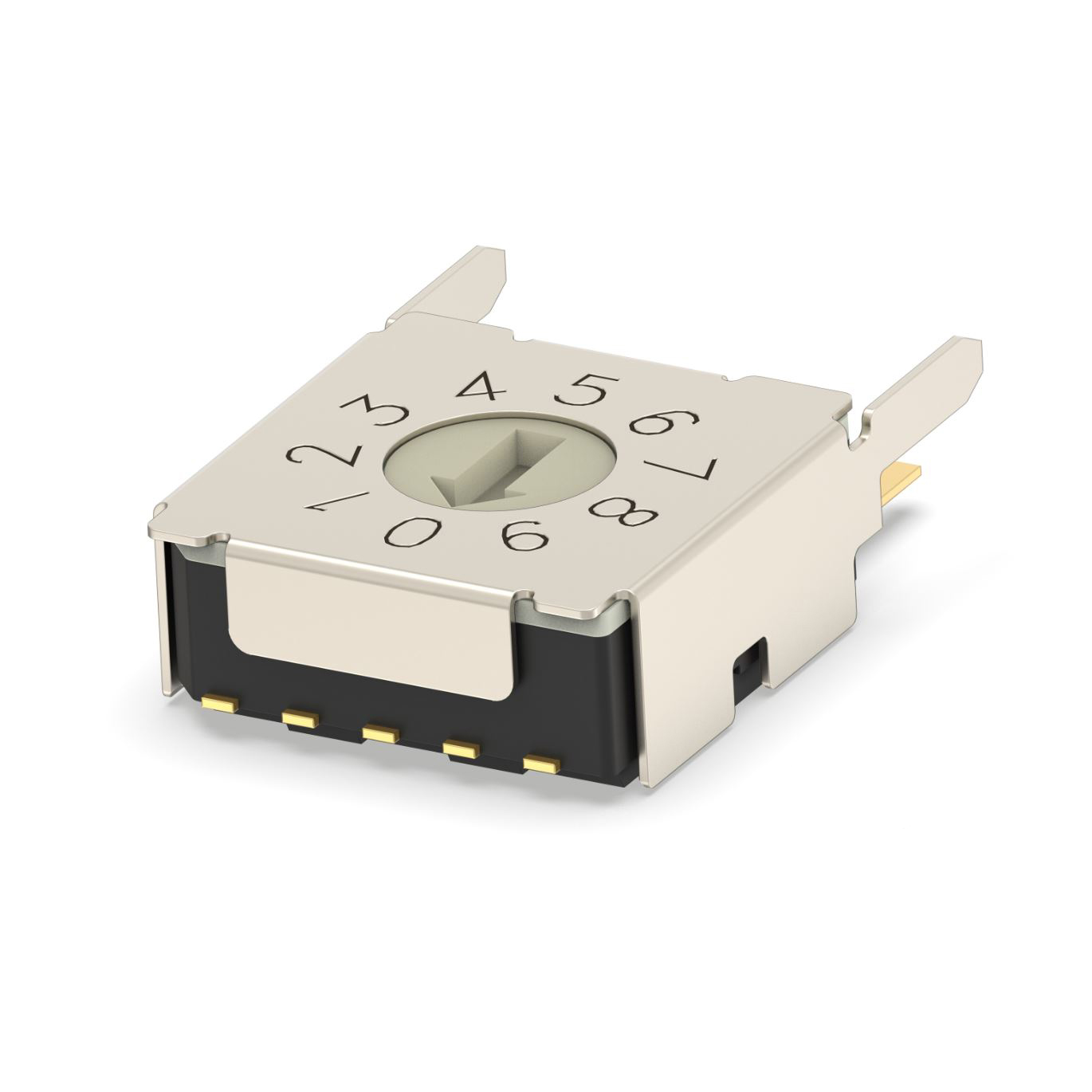

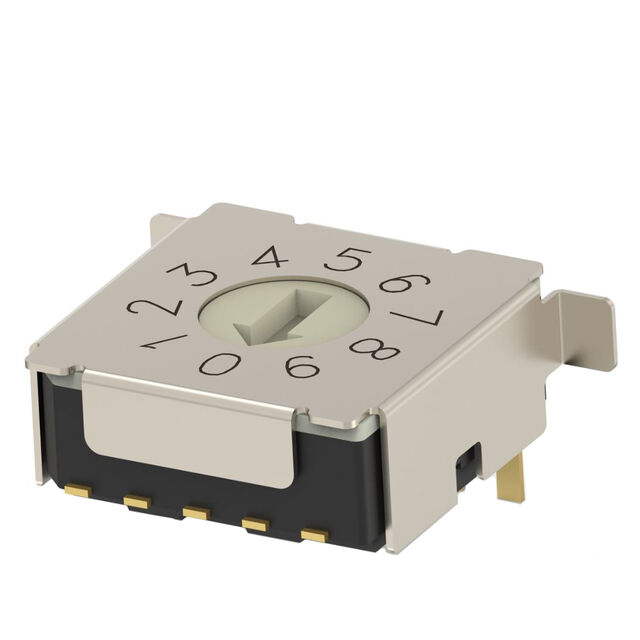

| Part Number | MRSSH4DR10SMGWT | MRSSH4DR10THT | MRSSH4DC10SMGWT | MRSSH4DC10SMGWTR |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH ROTARY DIP BCD 0.4VA 20V | SWITCH ROTARY DIP BCD 0.4VA 20V | SW ROTARY DIP BCD COMP 0.4VA 20V | SW ROTARY DIP BCD COMP 0.4VA 20V |
| Series | MRSS | MRSS | MRSS | MRSS |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
