MRSSV1DG16THT
lmages are for reference only.MRSSV1DG16THT
SW ROTARY DIP GRY CODE 0.4VA 20V
Datasheet-
69,917 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Dip Switch Gray Code 16 Position Through Hole Rotary for Tool Actuator 0.4VA 20VAC/DC
MRSSV1DG16THT
| Category | Switches - DIP Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | MRSS |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Circuit | Gray Code |
| Number of Positions | 16 |
| Current Rating (Amps) | 0.4VA |
| Voltage Rating | 20VAC/DC |
| Actuator Type | Rotary for Tool |
| Actuator Level | Flush, Recessed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.130" (3.30mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Body Material | Polyphenylene Sulfide (PPS) |
| Length | 0.283" (7.20mm) |
| Mechanical Life | 10,000 Steps |
| Electrical Life | 10,000 Steps |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

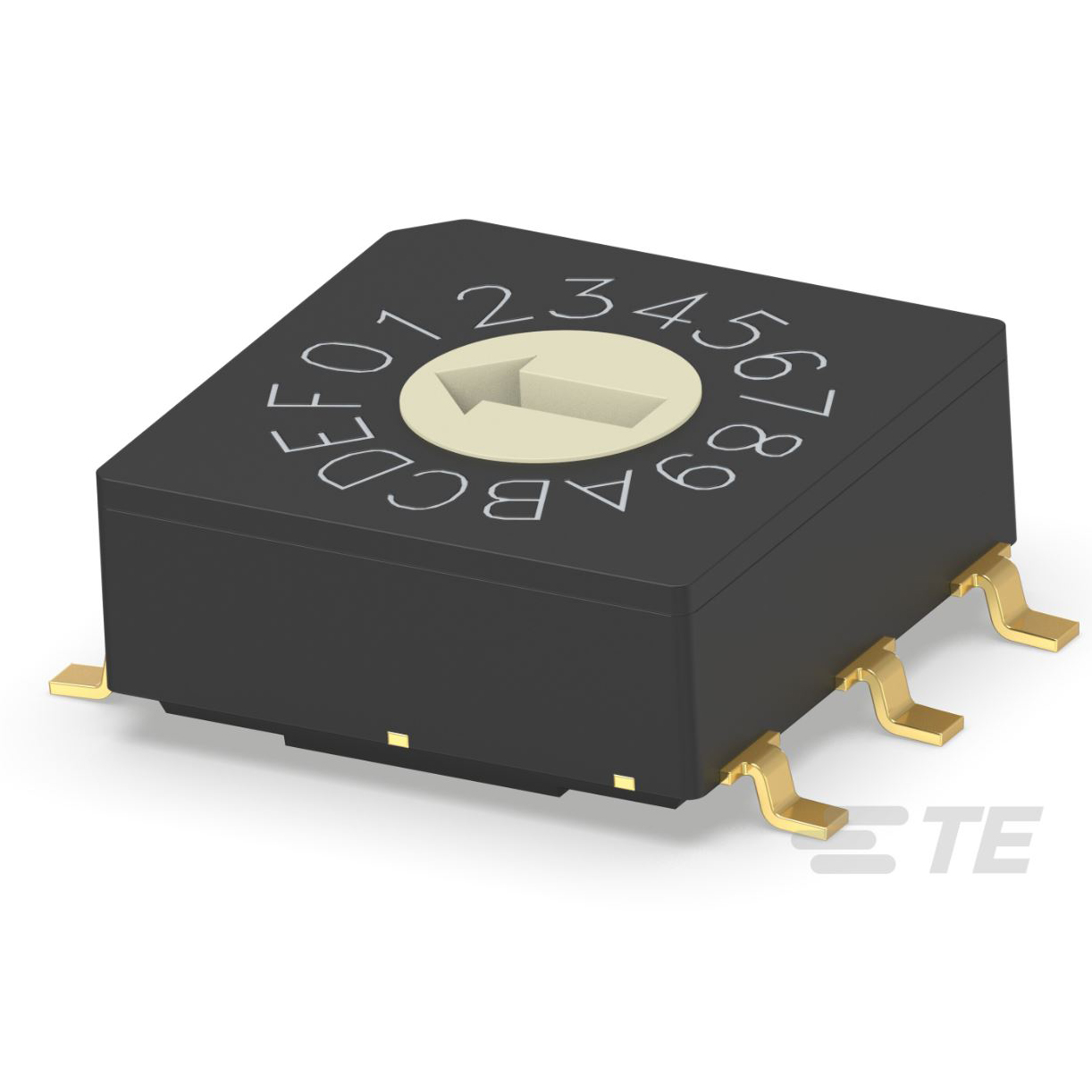

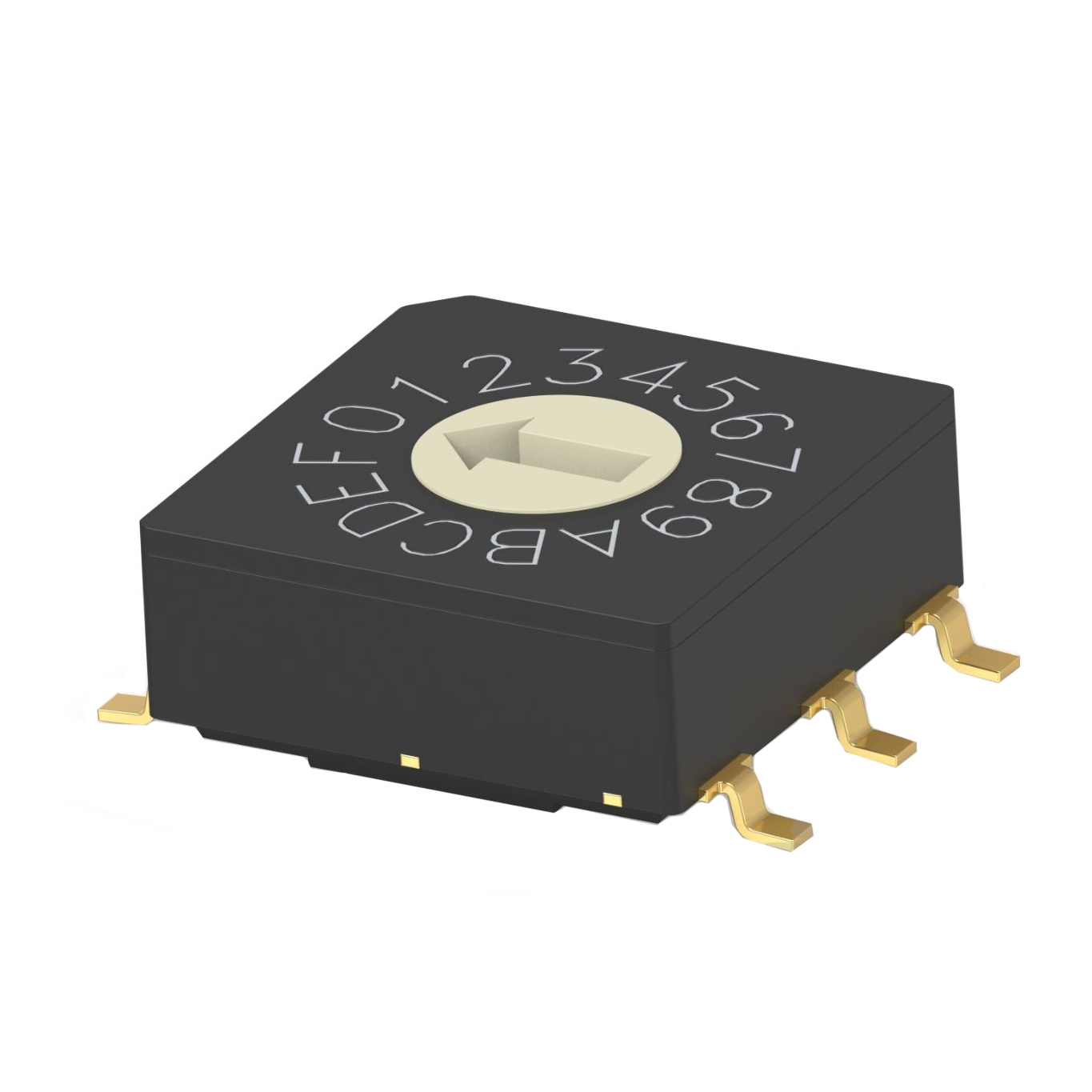

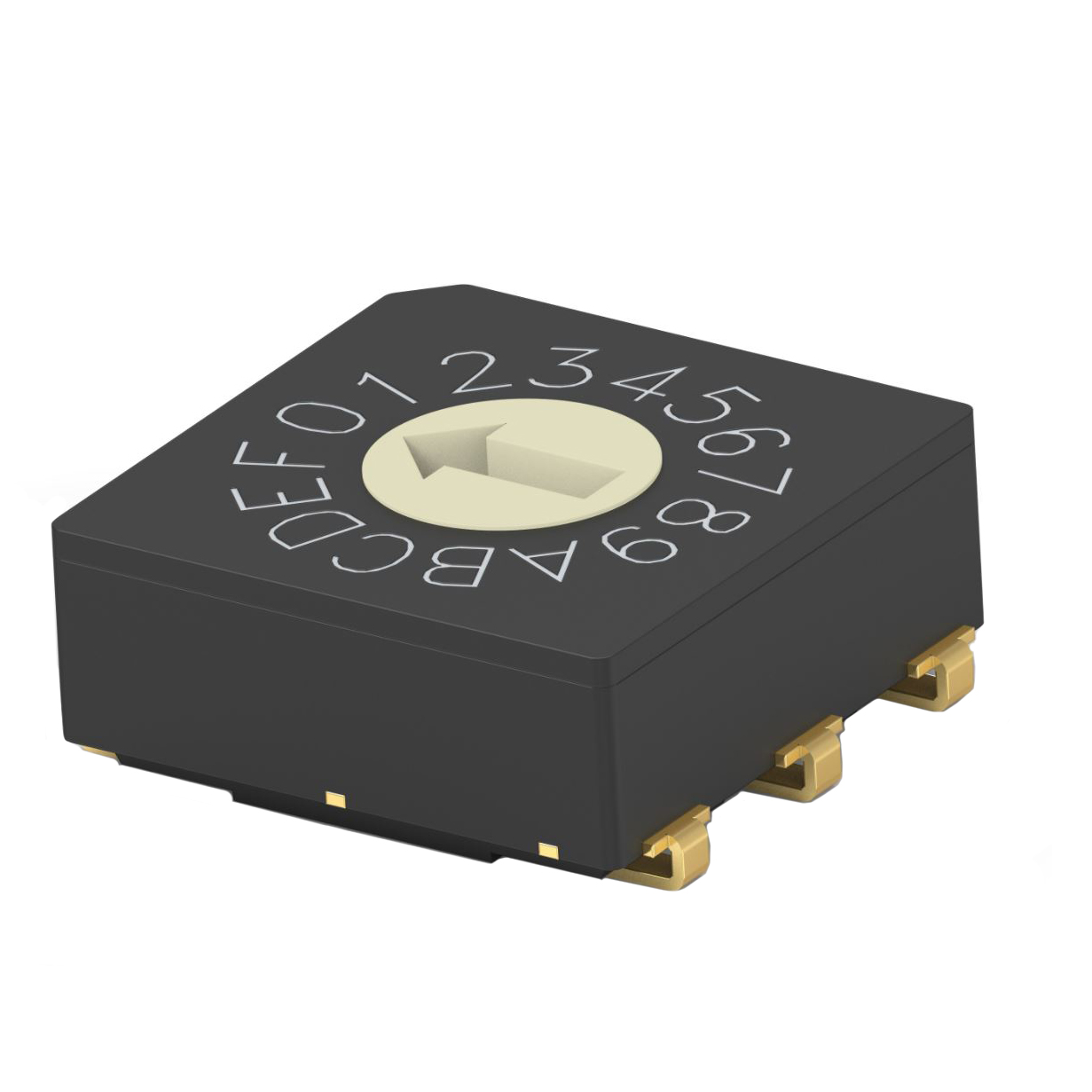

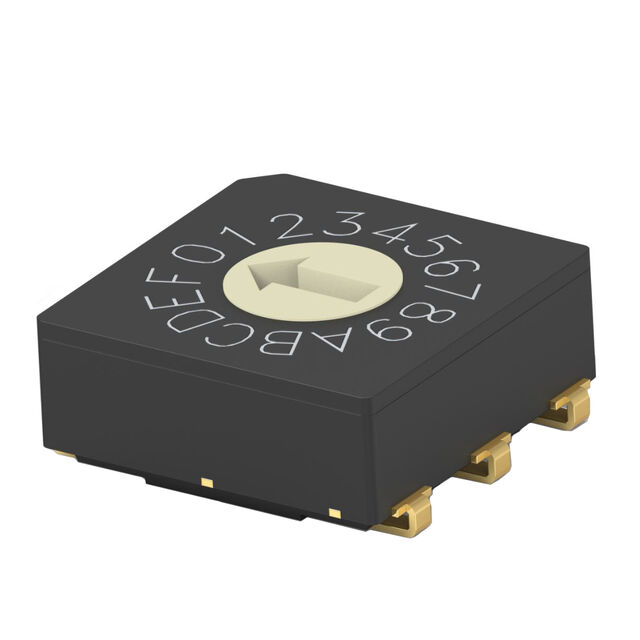

| Part Number | MRSSV1DG16SMGWT | MRSSV1DG16SMGWTR | MRSSV1DG16SMJT | MRSSV1DG16SMJTR |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SW ROTARY DIP GRY CODE 0.4VA 20V | SW ROTARY DIP GRY CODE 0.4VA 20V | SW ROTARY DIP GRY CODE 0.4VA 20V | SW ROTARY DIP GRY CODE 0.4VA 20V |
| Series | MRSS | MRSS | MRSS | MRSS |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
