Product CatalogPart Number
MS1247L6
Manufacturer
CIT Relay and SwitchDescription
SWITCH SLIDE SPDT 0.2A 30V
Datasheet
DatasheetPackage
-
In Stock
21,455 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MS1247L6
MS1247L6
lmages are for reference only.Payment Methods
Delivery Services
Slide Switch SPDT Through Hole, Right Angle
Quick Inquiry
MS1247L6
Specifications
| Category | Switches - Slide Switches - |
| Manufacturer | CIT Relay and Switch |
| Series | MS1247 |
| Packaging | Bag |
| RoHS Status | RoHS Compliant |
| Circuit | SPDT |
| Contact Timing | Not Specified |
| Switch Function | On-On |
| Current Rating (Amps) | 200mA (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 30 V |
| Actuator Type | Standard |
| Actuator Length | 6.00mm |
| Contact Material | Phosphor Bronze |
| Contact Finish | Silver |
| Mounting Type | Through Hole, Right Angle |
| Termination Style | PC Pin |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Actuator Material | Polyamide (PA66), Nylon 6/6 |
| Switch Travel | 2.00mm |
| Mechanical Life | - |
| Electrical Life | 10,000 Cycles |
| Operating Force | 200gf |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

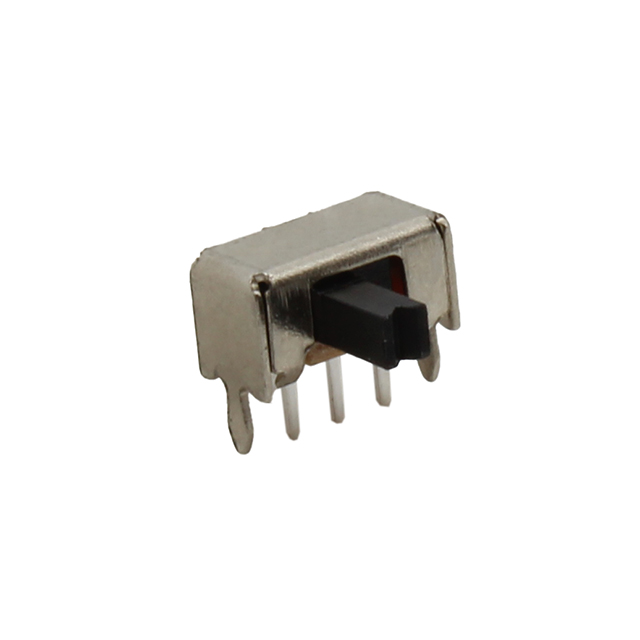

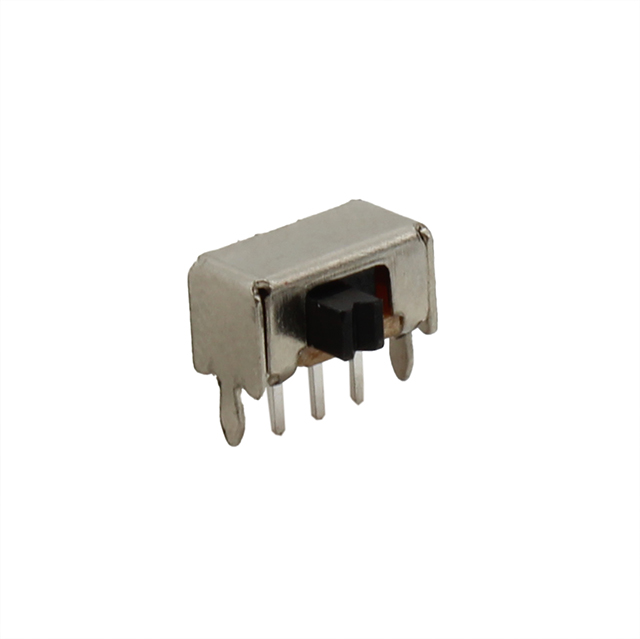

| Part Number | MS1247L2 | MS1247L4 | MSS-102545-28A-D | MSN24BSG30 |
| Manufacturer | CIT Relay and Switch | CIT Relay and Switch | Same Sky | NKK Switches |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | |
| Description | SWITCH SLIDE SPDT 0.2A 30V | SWITCH SLIDE SPDT 0.2A 30V | SWITCH SLIDE SPDT 0.3A 24V | MINIATURE SLIDE |
| Series | MS1247 | MS1247 | - | - |
| Packaging | Bag | Bag | Bag | Bulk |
