Product CatalogPart Number
MS20AFG01
Manufacturer
NKK SwitchesDescription
SWITCH SLIDE SP3T 0.4VA 28V
Datasheet
DatasheetPackage
-
In Stock
99,144 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MS20AFG01
MS20AFG01
lmages are for reference only.Payment Methods
Delivery Services
Slide Switch SP3T Panel Mount
Quick Inquiry
MS20AFG01
Specifications
| Category | Switches - Slide Switches - |
| Manufacturer | NKK Switches |
| Series | MS |
| Packaging | |
| RoHS Status | ROHS3 Compliant |
| Circuit | SP3T |
| Contact Timing | Non-Shorting (BBM) |
| Switch Function | On-On-On |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
| Actuator Type | Standard |
| Actuator Length | 5.10mm |
| Contact Material | Copper |
| Contact Finish | Gold |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Features | Jumper needed to achieve triple throw |
| Operating Temperature | -30°C ~ 85°C |
| Actuator Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Switch Travel | 3.50mm |
| Mechanical Life | 100,000 Cycles |
| Electrical Life | 50,000 Cycles |
| Operating Force | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
|
|
 |

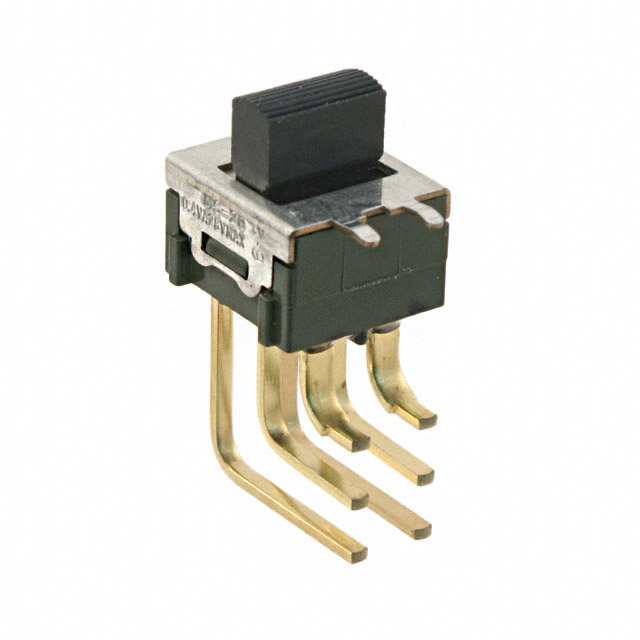

| Part Number | MS20AFW01 | MS20ANW03 | MS20ASG13 | MS20BSG40 |
| Manufacturer | NKK Switches | NKK Switches | NKK Switches | NKK Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | SWITCH SLIDE SP3T 6A 125V | SWITCH SLIDE SP3T 6A 125V | SWITCH SLIDE SP3T 0.4VA 28V | SWITCH SLIDE SP3T 0.4VA 28V |
| Series | MS | MS | MS | MS |
| Packaging | Bulk | Bulk | Tray |
