Product CatalogPart Number
MSA-G
Manufacturer
Adam TechDescription
SHUNT 2.54MM PITCH
Datasheet
DatasheetPackage
-
In Stock
93,331 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MSA-G
MSA-G
lmages are for reference only.Payment Methods
Delivery Services
2 (1 x 2) Position Shunt Connector Black Closed Top 0.100" (2.54mm) Gold
Quick Inquiry
MSA-G
Specifications
| Category | Connectors, Interconnects - Shunts-Jumpers - |
| Manufacturer | Adam Tech |
| Series | MS |
| Packaging | Bag |
| RoHS Status | ROHS3 Compliant |
| Type | Closed Top |
| Gender | Female Sockets |
| Number of Positions or Pins (Grid) | 2 (1 x 2) |
| Pitch | 0.100" (2.54mm) |
| Height | 0.236" (6.00mm) |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | 3A |
| Base Product Number | MSA |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | MSE-G | MS2B-G | MSDA-G | MST-G |
| Manufacturer | Adam Tech | Adam Tech | Adam Tech | Adam Tech |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

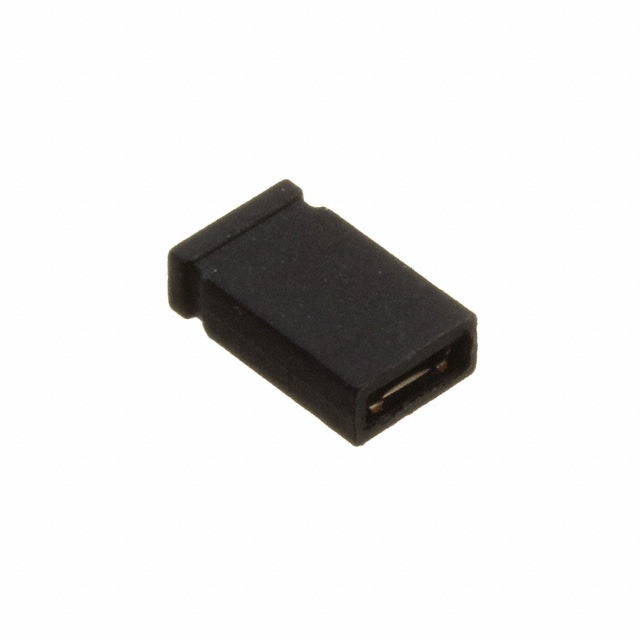

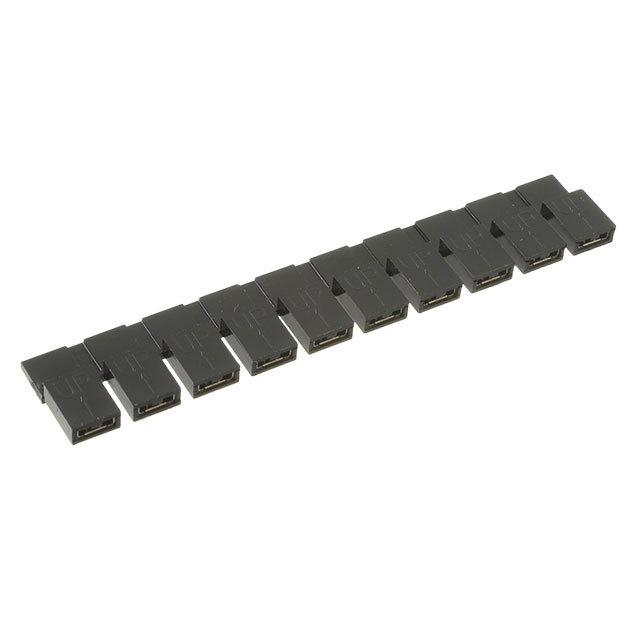

| Description | SHUNT 2.54MM PITCH | MINI SHUNT 2.0MM 2P GOLD | SHUNT 2.54MM PITCH | SHUNT 2.54MM PITCH |
| Series | MS | MS | MS | MS |
| Packaging | Bulk | Bag | Bag | Bag |
