Product CatalogPart Number
MSB30M
Manufacturer
MDDDescription
BRIDGE RECT 1PHASE 1KV 3A UMSB
Datasheet
DatasheetPackage
4-SMD, Flat Leads
In Stock
46,801 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MSB30M
MSB30M
lmages are for reference only.Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 1 kV Surface Mount UMSB
Quick Inquiry
MSB30M
Specifications
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | MDD |
| Series | UMSB |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | - |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 3 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Flat Leads |
| Supplier Device Package | UMSB |
| Base Product Number | MSB30 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |  |  |  |

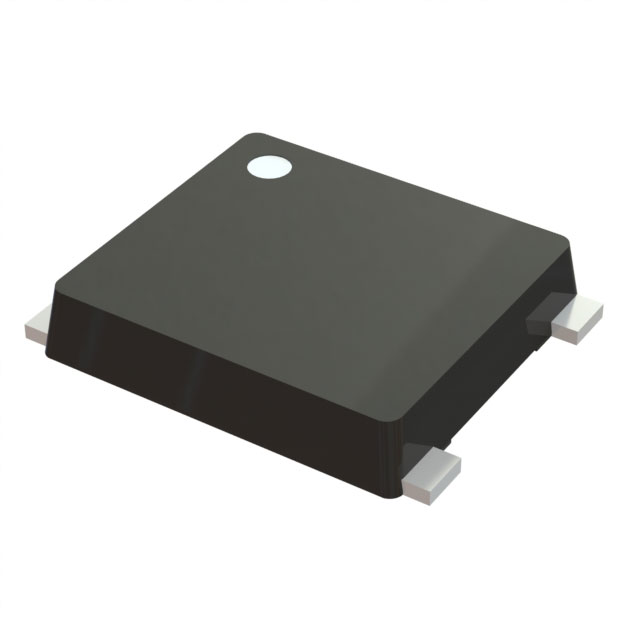

| Part Number | MSB30JL-13 | MSB30KH-13 | MSB30M-13 | MSB30TM |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

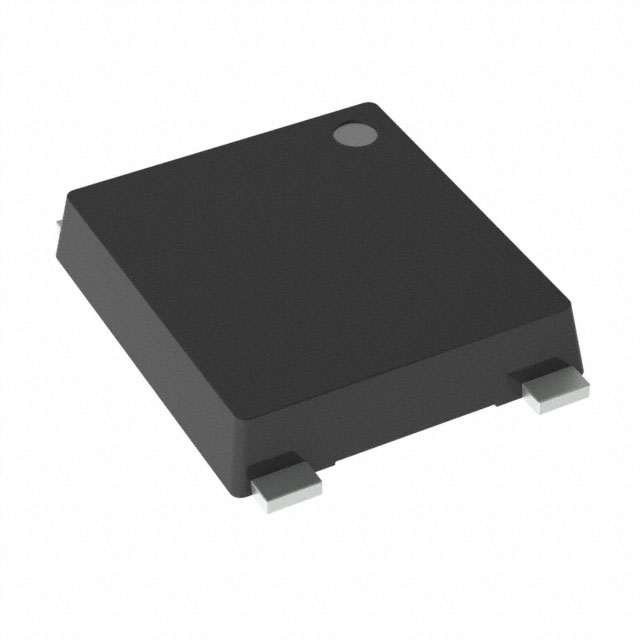

| Description | LOW POWER BRIDGE MSBL T&R 2.5K | BRIDGE RECT 1PHASE 800V 3A 4MSBL | BRIDGE RECT 1PHASE 1KV 3A 4MSBL | Low Power Bridge MSBL T&R 2.5K |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
