Product CatalogPart Number
MSC400SMA330B4
Manufacturer
Microchip TechnologyDescription
MOSFET SIC 3300 V 400 MOHM TO-24
Datasheet
DatasheetPackage
TO-247-4
In Stock
73,956 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MSC400SMA330B4
MSC400SMA330B4
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 3300 V 11A (Tc) 131W (Tc) Through Hole TO-247-4
Quick Inquiry
MSC400SMA330B4
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 3300 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Rds On (Max) @ Id, Vgs | 520mOhm @ 5A, 20V |
| Vgs(th) (Max) @ Id | 2.97V @ 1mA |
| Vgs (Max) | +23V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 579 pF @ 2400 V |
| FET Feature | - |
| Power Dissipation (Max) | 131W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-4 |
| Package / Case | TO-247-4 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 37 nC @ 20 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

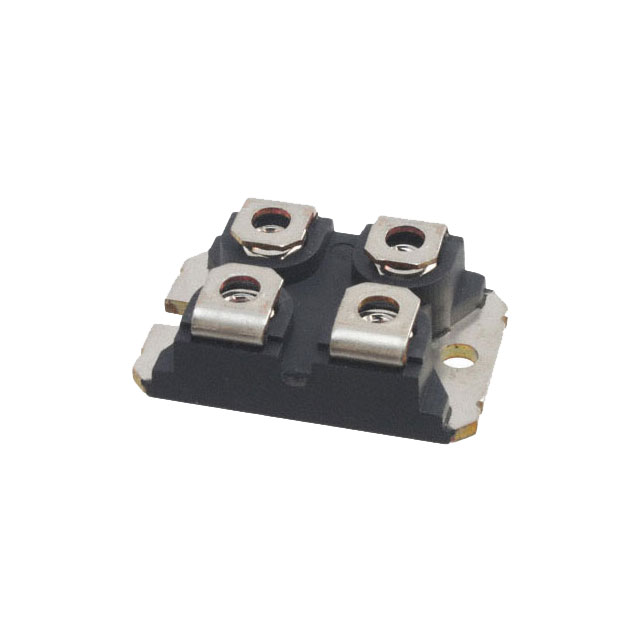

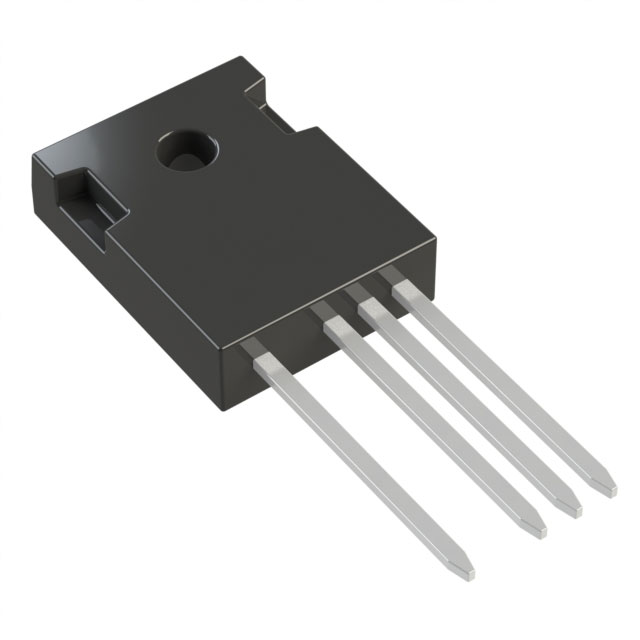

| Part Number | MSC400SMA330B4N | MSC40SM120JCU2 | MSC40SM120JCU3 | BS170PSTOA |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET SIC 3300V 400 MOHM TO-247 | SICFET N-CH 1.2KV 55A SOT227 | SICFET N-CH 1.2KV 55A SOT227 | MOSFET N-CH 60V 270MA E-LINE |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR) |
