Product CatalogPart Number
MSCDC300A120AG
Manufacturer
Microchip TechnologyDescription
DIODE MODULE SIC 1200V 300A SP6
Datasheet
DatasheetPackage
Module
In Stock
11,165 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MSCDC300A120AG
MSCDC300A120AG
lmages are for reference only.Payment Methods
Delivery Services
Diode Array 1 Pair Series Connection 1200 V 300A Chassis Mount Module
Quick Inquiry
MSCDC300A120AG
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 1 Pair Series Connection |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) (per Diode) | 300A |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 300 A |
| Speed | No Recovery Time > 500mA (Io) |
| Current - Reverse Leakage @ Vr | 1.2 mA @ 1200 V |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | SP6 |
| Base Product Number | MSCDC300 |
| Reverse Recovery Time (trr) | 0 ns |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |

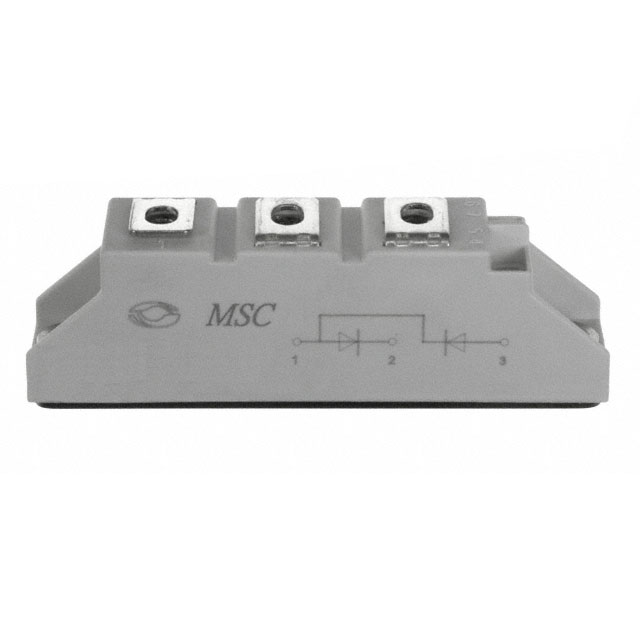

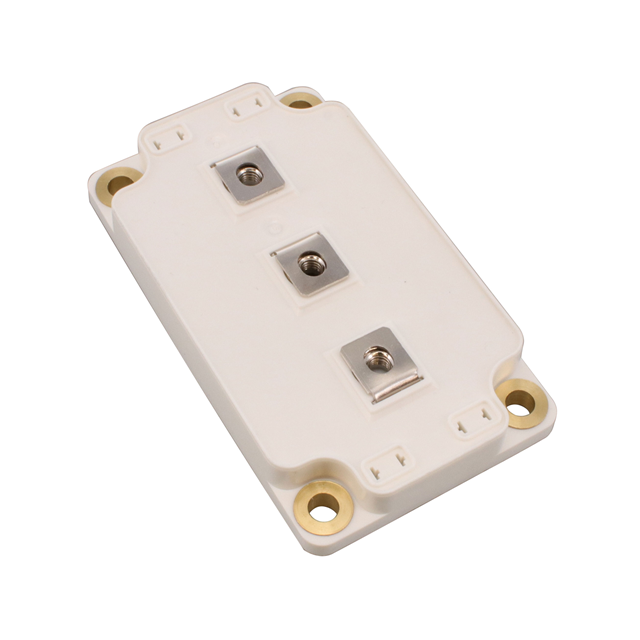

| Part Number | MSCDC300A170AG | MSCDC300A70AG | MSCD100-08 | MSCD100-12 |
| Manufacturer | Microchip Technology | Microchip Technology | Microsemi Corporation | Microsemi Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | DIODE MODULE SIC 1700V 300A | DIODE MODULE SIC 700V 300A SP6 | DIODE MODULE GP 800V 100A D1 | DIODE MODULE GP 1200V 100A D1 |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Bulk | Bulk |
