Product CatalogPart Number
MSCSM170AM058CD3AG
Manufacturer
Microchip TechnologyDescription
MOSFET 2N-CH 1700V 353A
Datasheet
DatasheetPackage
Module
In Stock
75,003 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MSCSM170AM058CD3AG
MSCSM170AM058CD3AG
lmages are for reference only.Payment Methods
Delivery Services
Mosfet Array 1700V (1.7kV) 353A (Tc) 1.642kW (Tc) Chassis Mount
Quick Inquiry
MSCSM170AM058CD3AG
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Technology | Silicon Carbide (SiC) |
| Configuration | 2 N Channel (Phase Leg) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 1700V (1.7kV) |
| Current - Continuous Drain (Id) @ 25°C | 353A (Tc) |
| Rds On (Max) @ Id, Vgs | 7.5mOhm @ 180A, 20V |
| Vgs(th) (Max) @ Id | 3.3V @ 15mA |
| Gate Charge (Qg) (Max) @ Vgs | 1068nC @ 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 19800pF @ 1000V |
| Power - Max | 1.642kW (Tc) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | - |
| Base Product Number | MSCSM170 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
|

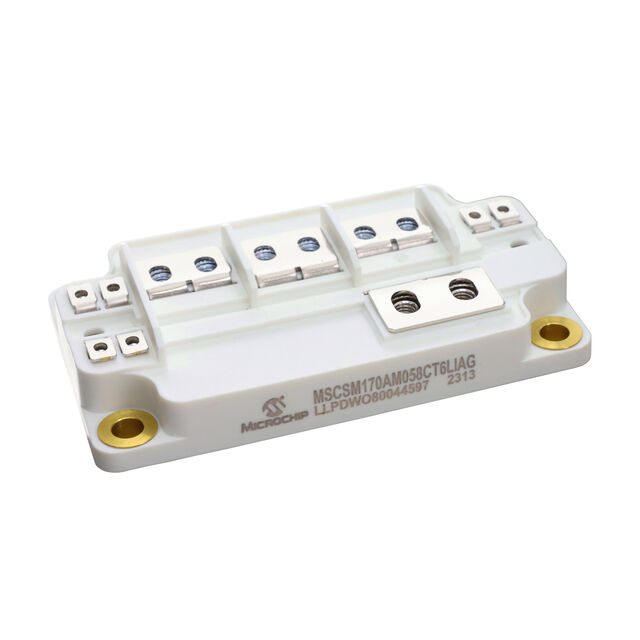

| Part Number | MSCSM170AM058CT6AG | MSCSM170AM058CT6LIAG | MSCSM170AM029CT6LIAG | MSCSM170AM029T6LIAG |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET 2N-CH 1700V 353A | MOSFET 2N-CH 1700V 353A | MOSFET 2N-CH 1700V 676A | SIC MOSFET |
| Series | - | - | - | - |
| Packaging | Bulk | Tube | Bulk | Box |
