Product CatalogPart Number
MSD1278H-124KED
Manufacturer
CoilcraftDescription
FIXED INDUCTOR 120UH SMD
Datasheet
DatasheetPackage
Nonstandard
In Stock
56,262 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MSD1278H-124KED
MSD1278H-124KED

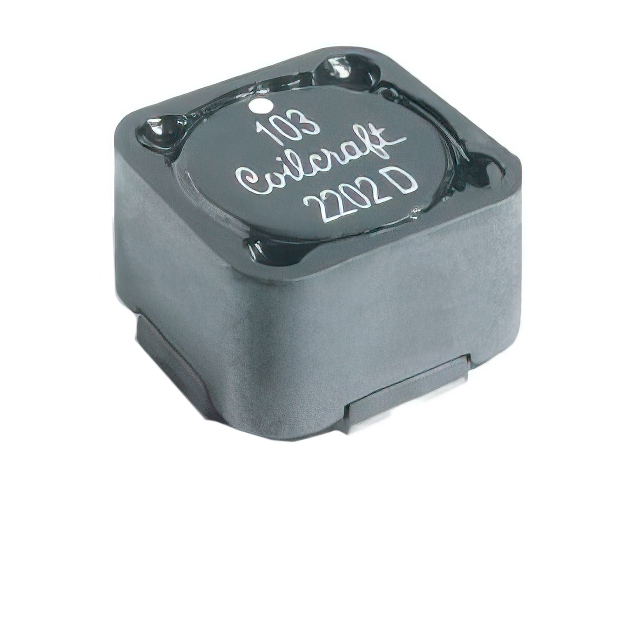

lmages are for reference only.Payment Methods
Delivery Services
Shielded 2 Coil Inductor Array 480 µH Inductance - Connected in Series 120 µH Inductance - Connected in Parallel 153.5mOhm Max DC Resistance (DCR) - Parallel Nonstandard
Quick Inquiry
MSD1278H-124KED
Specifications
| Category | Inductors, Coils, Chokes - Arrays-Signal Transformers - |
| Manufacturer | Coilcraft |
| Series | MSD1278H |
| Packaging | Strip |
| RoHS Status | |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 120 µH |
| Inductance - Connected In Series | 480 µH |
| Tolerance | ±10% |
| Current Rating - Parallel | - |
| Current Rating - Series | - |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 153.5mOhm Max |
| DC Resistance (DCR) - Series | 614mOhm Max |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.484" L x 0.484" W (12.30mm x 12.30mm) |
| Height | 0.317" (8.05mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |
| Part Number | MSD1278H-124KED | MSD1278H-103MED | MSD1278H-103MED | MSD1278H-104KED |
| Manufacturer | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | FIXED INDUCTOR 120UH SMD | FIXED INDUCTOR 10UH SMD | FIXED INDUCTOR 10UH SMD | FIXED INDUCTOR 100UH SMD |
| Series | MSD1278H | MSD1278H | MSD1278H | MSD1278H |
| Packaging | Strip | Strip | Strip | Strip |
