Product CatalogPart Number
MSMCJ6.5CA
Manufacturer
Microchip TechnologyDescription
TVS DIODE 6.5VWM 11.2VC DO214AB
Datasheet
DatasheetPackage
DO-214AB, SMC
In Stock
90,161 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MSMCJ6.5CA
MSMCJ6.5CA

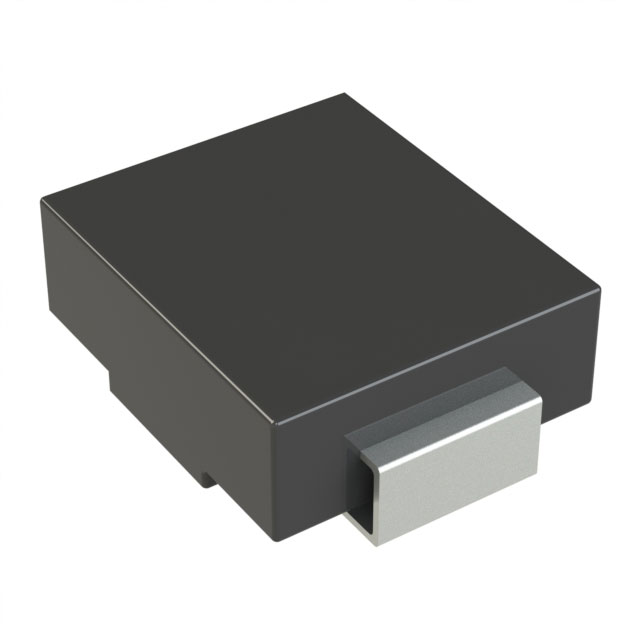

lmages are for reference only.Payment Methods
Delivery Services
11.2V Clamp 133.9A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
Quick Inquiry
MSMCJ6.5CA
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 6.5V |
| Voltage - Breakdown (Min) | 7.22V |
| Voltage - Clamping (Max) @ Ipp | 11.2V |
| Current - Peak Pulse (10/1000µs) | 133.9A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) |
| Base Product Number | SMCJ6.5 |
| Unidirectional Channels | - |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | MSMCJ6.5CA/TR | MSMCJ6.5CAE3 | MSMCJ6.5CAE3/TR | MSMCJ6.0A |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | MDE Semiconductor Inc |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 6.5VWM 11.2VC SMCJ | TVS DIODE 6.5VWM 11.2VC DO214AB | TVS DIODE 6.5VWM 11.2VC SMCJ | TVS DIODE UP 6VRWM 10.3VC |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | MDE Semiconductor Inc |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
