Product CatalogPart Number
MSMLJ48A
Manufacturer
MDE Semiconductor IncDescription
TVS DIODE UP 48VRWM 77.4VC
Datasheet
DatasheetPackage
DO-214AB, SMC
In Stock
69,336 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MSMLJ48A
MSMLJ48A
lmages are for reference only.Payment Methods
Delivery Services
77.4V Clamp 38.8A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
Quick Inquiry
MSMLJ48A
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | MDE Semiconductor Inc |
| Series | MSMLJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 48V |
| Voltage - Breakdown (Min) | 53.3V |
| Voltage - Clamping (Max) @ Ipp | 77.4V |
| Current - Peak Pulse (10/1000µs) | 38.8A |
| Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |
| Part Number | MSMLJ48A | MSMLJ48A/TR | MSMLJ48AE3 | MSMLJ48AE3/TR |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | |
| Description | TVS DIODE 48VWM 77.4VC DO214AB | TVS DIODE 48VWM 77.4VC SMLJ | TVS DIODE 48VWM 77.4VC DO214AB | TVS DIODE 48VWM 77.4VC SMLJ |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Bulk | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
MSMLJ100A
MDE Semiconductor Inc
MSMLJ100A
Microchip Technology
MSMLJ100A/TR
Microchip Technology
MSMLJ100AE3
Microchip Technology
MSMLJ100AE3/TR
Microchip Technology

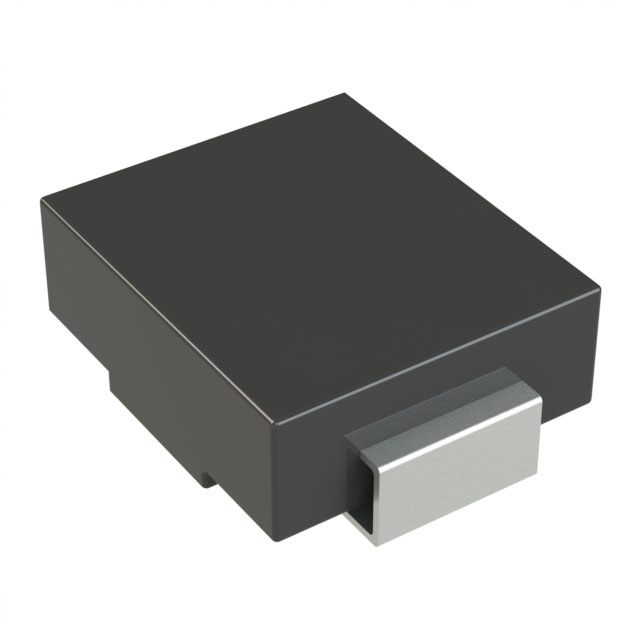

MSMLJ100CA
