MSMP7.0A-M3/89A

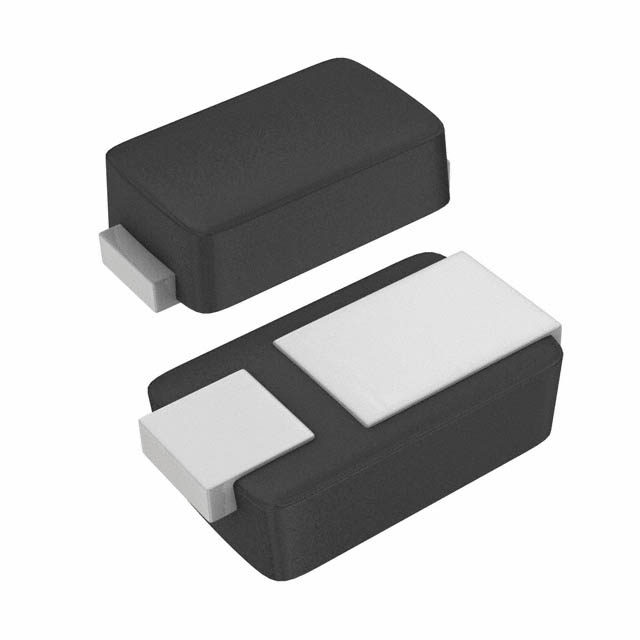

lmages are for reference only.MSMP7.0A-M3/89A
TVS DIODE 7VWM 12VC MICROSMP
DatasheetDO-219AD
79,082 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12V Clamp 12.5A Ipp Tvs Diode Surface Mount DO-219AD (MicroSMP)
MSMP7.0A-M3/89A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 7V |
| Voltage - Breakdown (Min) | 7.78V |
| Voltage - Clamping (Max) @ Ipp | 12V |
| Current - Peak Pulse (10/1000µs) | 12.5A |
| Power - Peak Pulse | 150W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-219AD |
| Supplier Device Package | DO-219AD (MicroSMP) |
| Base Product Number | MSMP7.0 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

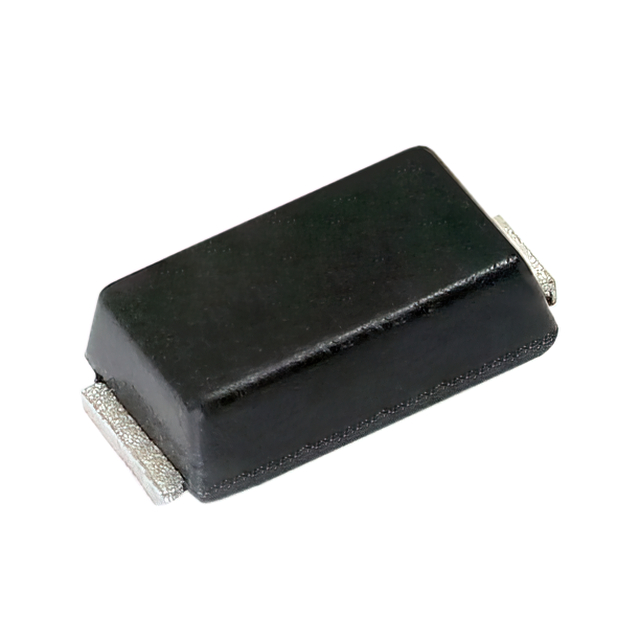

| Part Number | MSMP7.0AHM3/H | MSMP7.5A-M3/89A | MSMP7.5AHM3/H | P4SOD6.5CAX |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | WeEn Semiconductors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | LOW PROFILE OF 150W TVS PRODUCT | TVS DIODE 7.5VWM 12.9VC MICROSMP | LOW PROFILE OF 150W TVS PRODUCT | P4SOD6.5CA/SOD123/REEL 7" Q1/T1 |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | WeEn Semiconductors |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
