MSP5.0A-E3/89A

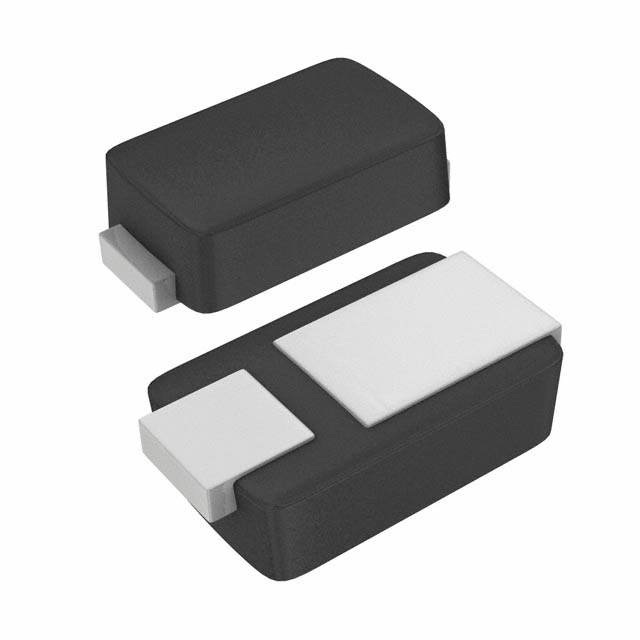

lmages are for reference only.MSP5.0A-E3/89A
TVS DIODE 5VWM 13.4VC MICROSMP
DatasheetDO-219AD
75,092 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
13.4V Clamp 75A (8/20µs) Ipp Tvs Diode Surface Mount DO-219AD (MicroSMP)
MSP5.0A-E3/89A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb®, eSMP® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V |
| Voltage - Breakdown (Min) | 6.4V |
| Voltage - Clamping (Max) @ Ipp | 13.4V |
| Current - Peak Pulse (10/1000µs) | 75A (8/20µs) |
| Power - Peak Pulse | 150W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-219AD |
| Supplier Device Package | DO-219AD (MicroSMP) |
| Base Product Number | MSP5.0 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | MSP5.0A-M3/89A | MSP5.0AHM3/89A | P4SOD6.5CAX | ESD111B1W0201E6327XTSA1 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | WeEn Semiconductors | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 5VWM 9.2VC MICROSMP | TVS DIODE 5VWM 13.4VC MICROSMP | P4SOD6.5CA/SOD123/REEL 7" Q1/T1 | TVS DIODES SG-WLL-2 |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | WeEn Semiconductors | Infineon Technologies |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
