Product CatalogPart Number
MSS1038-382NLC
Manufacturer
CoilcraftDescription
FIXED IND 3.8UH 6.05A 13MOHM SM
Datasheet
DatasheetPackage
Nonstandard
In Stock
10,576 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MSS1038-382NLC
MSS1038-382NLC

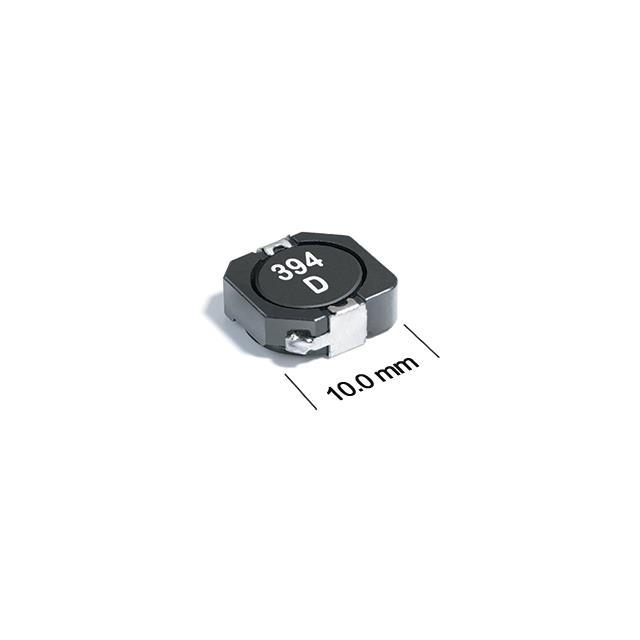

lmages are for reference only.Payment Methods
Delivery Services
3.8 µH Shielded Drum Core Inductor 6.05 A 13mOhm Max Nonstandard
Quick Inquiry
MSS1038-382NLC
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Coilcraft |
| Series | MSS1038 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core |
| Material - Core | Ferrite |
| Inductance | 3.8 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 6.05 A |
| Current - Saturation (Isat) | 4.94A |
| Shielding | Shielded |
| DC Resistance (DCR) | 13mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 45MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.402" L x 0.394" W (10.20mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | MSS1038-102NLC | MSS1038-103NLC | MSS1038-103NLC | MSS1038-104MLC |
| Manufacturer | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1UH 10A 6MOHM SM | FIXED IND 10UH 4.05A 35MOHM SM | FIXED IND 10UH 4.05A 35MOHM SM | FIXED IND 100UH 1.45A 304MOHM SM |
| Series | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
