Product CatalogPart Number
MSS2200G
Manufacturer
TE Connectivity ALCOSWITCH SwitchesDescription
SWITCH SLIDE DPDT 0.4VA 20V
Datasheet
DatasheetPackage
-
In Stock
39,546 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MSS2200G
MSS2200G
lmages are for reference only.Payment Methods
Delivery Services
Slide Switch DPDT Through Hole
Quick Inquiry
MSS2200G
Specifications
| Category | Switches - Slide Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | MSS |
| Packaging | Bulk |
| RoHS Status | |
| Circuit | DPDT |
| Contact Timing | Shorting (MBB) |
| Switch Function | On-On |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
| Actuator Type | Standard |
| Actuator Length | 2.30mm |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Features | Epoxy Sealed Terminals |
| Operating Temperature | -20°C ~ 85°C |
| Actuator Material | Polyoxymethylene (Acetal) (POM) |
| Switch Travel | 2.00mm |
| Mechanical Life | 15,000 Cycles |
| Electrical Life | 15,000 Cycles |
| Operating Force | 600gf |
| Base Product Number | MSS2 |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |

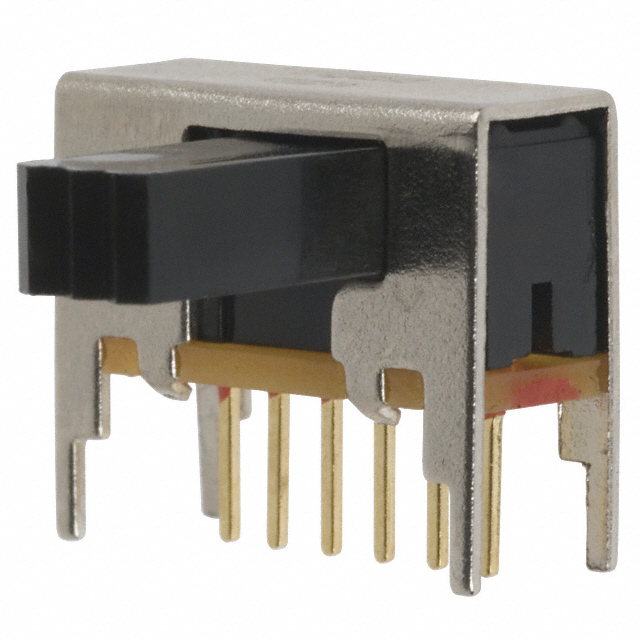

| Part Number | MSS2225G | MSS2250G | MSS2250R04 | MSS2250RG |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | SWITCH SLIDE DPDT 0.4VA 20V | SWITCH SLIDE DPDT 0.4VA 20V | Slide Switch, DPDT, On-on-on, La | SWITCH SLIDE DPDT 0.4VA 20V |
| Series | MSS | MSS | * | MSS |
| Packaging | Bulk | Bulk | Tray | Bulk |
