MTS360-2AA-C0002-ERA360-05K

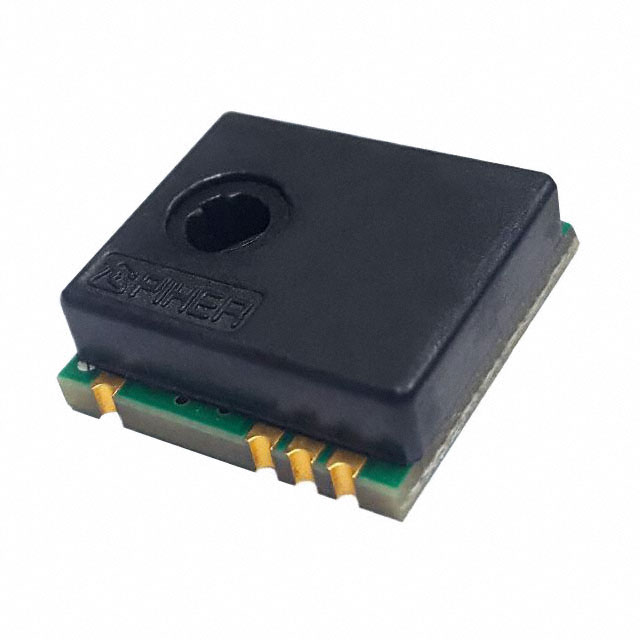

lmages are for reference only.MTS360-2AA-C0002-ERA360-05K
SENSOR ANGLE 360DEG SMD
Datasheet16-SMD Module, 8 Leads
82,546 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Angle, Linear, Rotary Hole for Shaft SMD (SMT) Tab
MTS360-2AA-C0002-ERA360-05K
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | MTS360 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Angle, Linear, Rotary |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360° |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Actuator Type | Hole for Shaft |
| Linearity | ±1% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5V |
| Mounting Type | Surface Mount |
| Termination Style | SMD (SMT) Tab |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 16-SMD Module, 8 Leads |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | MTS360 |
| Product Attribute |  |
 |
 |
 |
| Part Number | MTS360-1A-C0000-ERA360-05K | MTS360-1P-C0000-ERA360-05KF200 | MTS360-1S-C0000-ERA360-05K | MLX90513GGO-CAA-100-SP |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Melexis Technologies NV |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | SENSOR ANGLE 360DEG SMD | THROUGH HOLE MAGNETIC MINIATURE | SENSOR ANGLE 360DEG SMD | INDUCTIVE POSITION SENSOR ASSP W |
| Series | MTS360 | MTS360 | MTS360 | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
