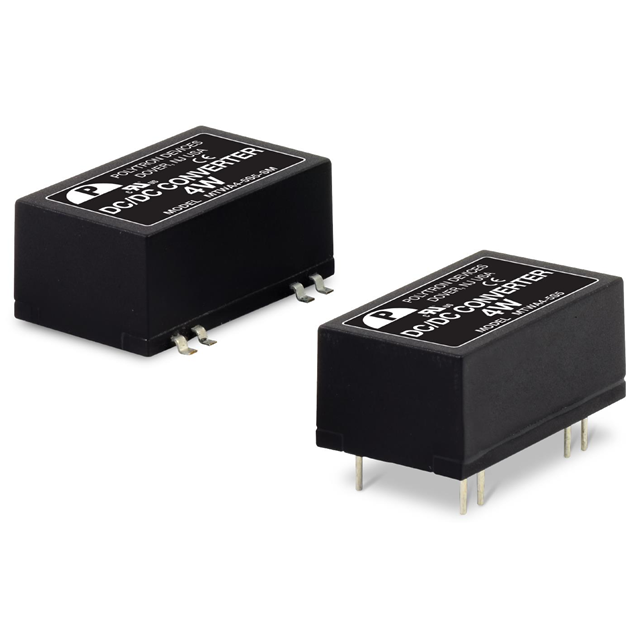

MTWA4-5S9
lmages are for reference only.MTWA4-5S9
DC/DC CONVERTER 4 WATTS MEDICAL
Datasheet16-DIP Module, 7 Leads
14,958 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 9V 389mA 4.5V - 12V Input
MTWA4-5S9
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Daburn Electronics |
| Series | MTWA4 (3.5W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 12V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 389mA |
| Power (Watts) | 3.5 W |
| Applications | ITE (Commercial), Medical |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 78% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP Module, 7 Leads |
| Size / Dimension | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, UL |
| Standard Number | - |
| Base Product Number | MTWA4 |
| Voltage - Isolation | 5 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | MTWA4-5S12 | MTWA4-5S12-SM | MTWA4-5S15 | MTWA4-5S15-SM |
| Manufacturer | Daburn Electronics | Daburn Electronics | Daburn Electronics | Daburn Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | DC/DC CONVERTER 4 WATTS MEDICAL | DC/DC CONVERTER 4 WATTS MEDICAL | DC/DC CONVERTER 4 WATTS MEDICAL | DC/DC CONVERTER 4 WATTS MEDICAL |
| Series | Daburn Electronics | Daburn Electronics | Daburn Electronics | Daburn Electronics |
| Packaging | Tube | Tube | Tube | Tube |
