MUN24AD03-SM
lmages are for reference only.MUN24AD03-SM
DC DC CONVERTER 5-12V
Datasheet25-BQFN Exposed Pad, Module
25,189 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 5 ~ 12V 3A 8V - 34V Input
MUN24AD03-SM
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Delta Electronics/Cyntec |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 8V |
| Voltage - Input (Max) | 34V |
| Voltage - Output 1 | 5 ~ 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 94% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 25-BQFN Exposed Pad, Module |
| Size / Dimension | 0.24" L x 0.24" W x 0.14" H (6.0mm x 6.0mm x 3.5mm) |
| Supplier Device Package | 25-QFN (6x6) |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | MUN24AD03 |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |

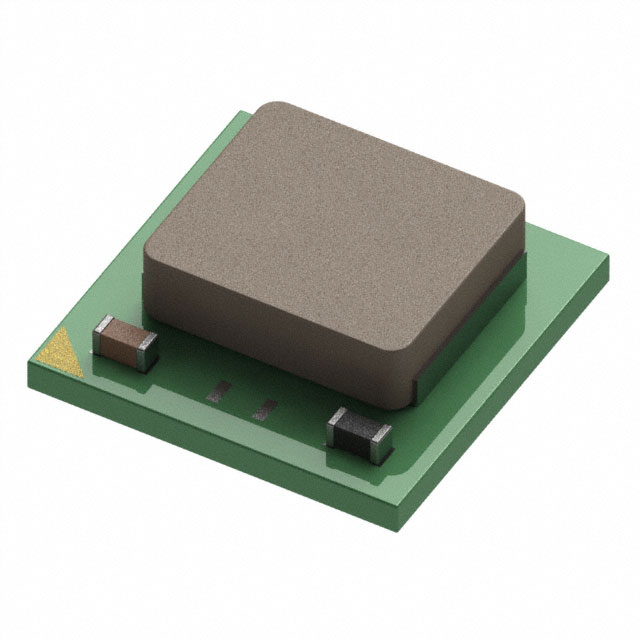

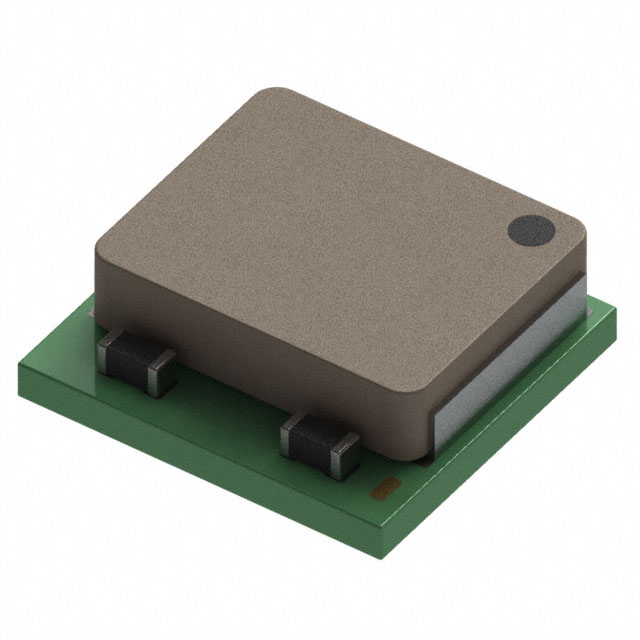

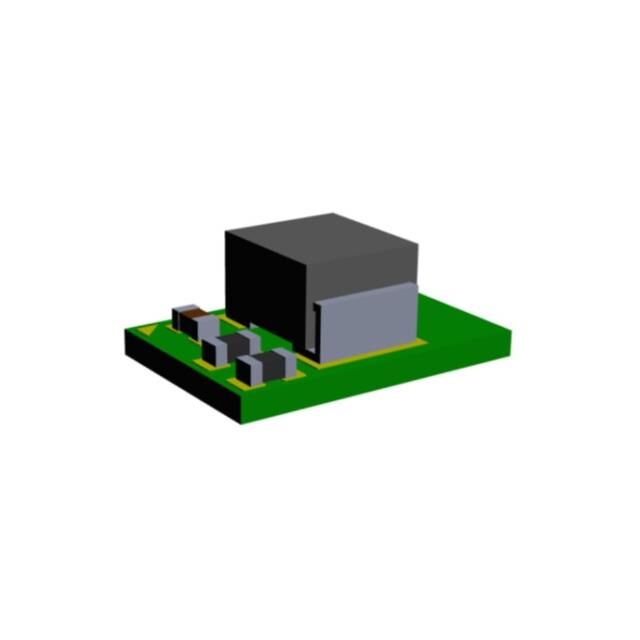

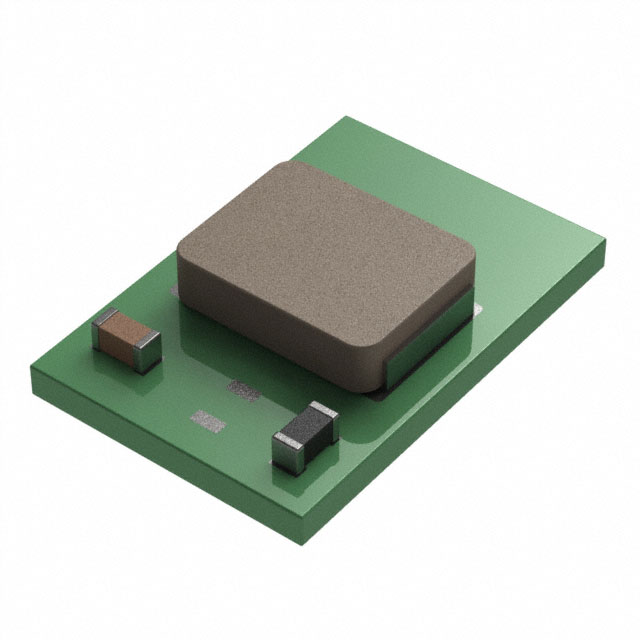

| Part Number | MUN123C01-SGB | MUN12AD01-SG | MUN12AD01-SH | MUN12AD03-SE |
| Manufacturer | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | POL 1A 12VIN DC-DC CONVERTER | DC DC CONVERTER 0.8-6V | DC DC CONVERTER 1-5V | DC DC CONVERTER 0.6-5.5V |
| Series | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
