Product CatalogPart Number
MUR15120-BP
Manufacturer
Micro Commercial CoDescription
Interface
Datasheet
DatasheetPackage
TO-220-2
In Stock
95,061 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MUR15120-BP
MUR15120-BP
lmages are for reference only.Payment Methods
Delivery Services
Diode 1200 V 15A Through Hole TO-220AC
Quick Inquiry
MUR15120-BP
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 15A |
| Voltage - Forward (Vf) (Max) @ If | 2.4 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 75 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 1200 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220AC |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | MUR15120 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|
| Part Number | MUR15120F-BP | MUR15120FL-BP | MUR15120H-BP | MUR15120L-BP |
| Manufacturer | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | Interface | SUPER FAST RECOVERY RECTIFIER | Interface | DIODE GEN PURP 1.2KV 15A TO220AC |
| Series | - | - | - | - |
| Packaging | Bulk | Tube | Bulk | Tube |
Customers Also Interested in
Recommended Products

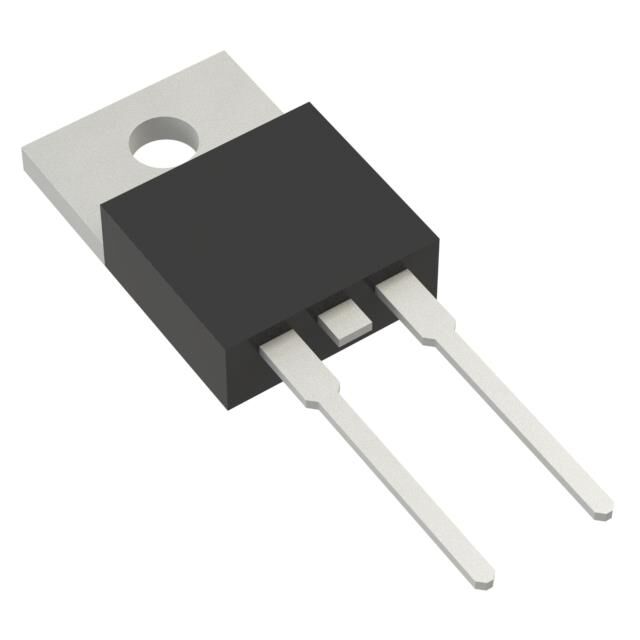

MUR1510
onsemi
MUR1510
Harris Corporation
MUR1510G
onsemi
MUR15120F-BP
Micro Commercial Co

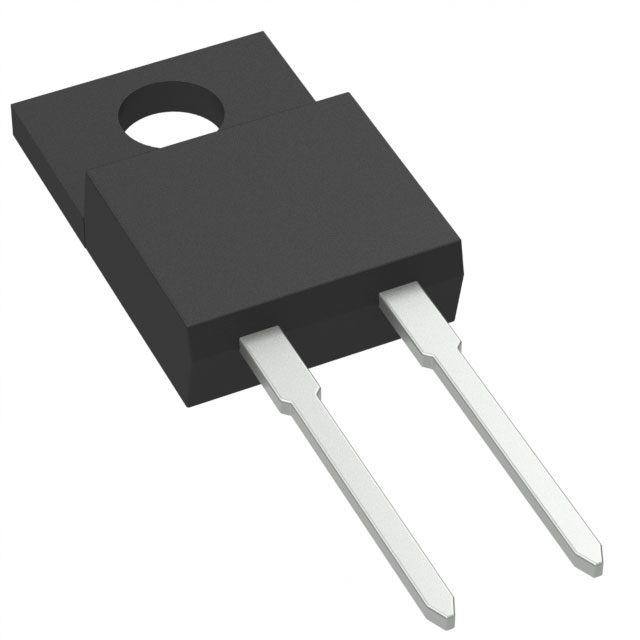

MUR15120FL-BP
