MUSBC11131
lmages are for reference only.MUSBC11131
CONN RCPT USB2.0 A STACK PCB R/A
Datasheet-
50,358 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
USB-A (USB TYPE-A), Stacked USB 2.0 Receptacle Connector 8 Position Panel Mount, Through Hole, Right Angle
MUSBC11131
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | MUSB |
| Packaging | Box |
| RoHS Status | RoHS Compliant |
| Connector Type | USB-A (USB TYPE-A), Stacked |
| Number of Contacts | 8 |
| Gender | Receptacle |
| Specifications | USB 2.0 |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Flange, Horizontal |
| Termination | Solder |
| Features | Cover |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 105°C |
| Number of Ports | 2 |
| Current Rating (Amps) | 1.5A |
| Voltage - Rated | - |
| Mating Cycles | 1500 |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Copper Alloy |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Base Product Number | MUSBC |
| Product Attribute | |
 |
 |
 |

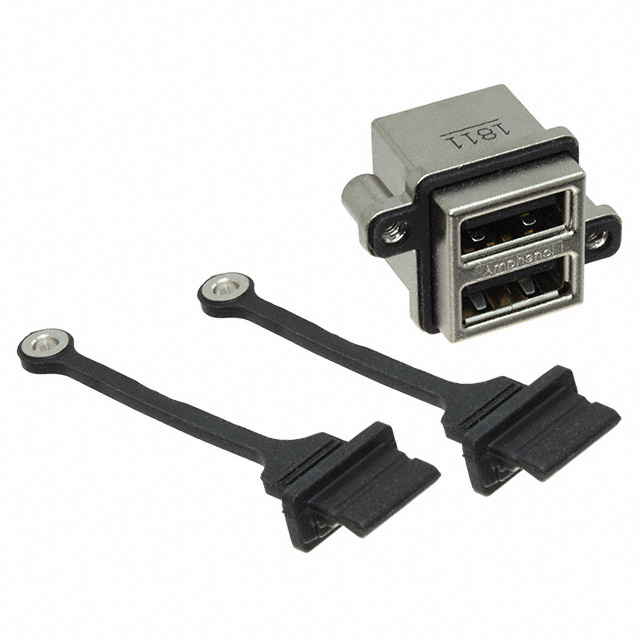

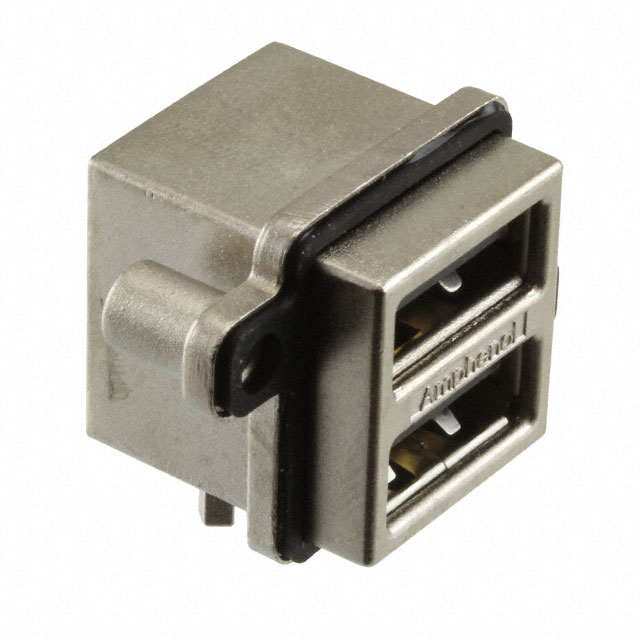

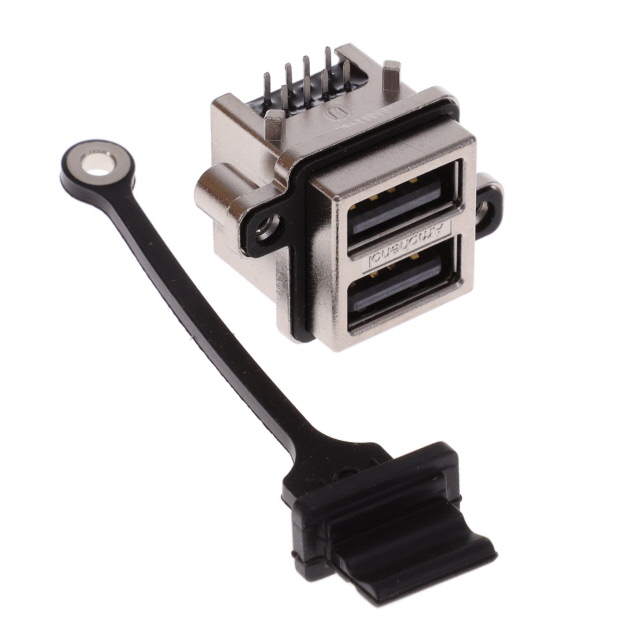

| Part Number | MUSBC111305 | MUSBC11135 | MUSBC111M0 | MUSBC111M5 |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | RUGGED USB GEN 1 STANDARD A S | CONN RCPT USB2.0 A STACK PCB R/A | CONN RCPT USB2.0 A STACK PCB R/A | CONN RCPT USB2.0 A STACK PCB R/A |
| Series | * | MUSB | MUSB | MUSB |
| Packaging | Box | Box | Box | Box |
