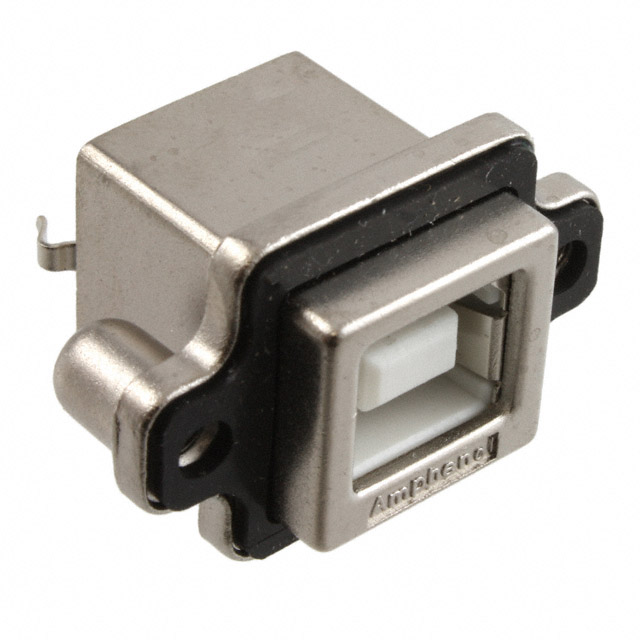

MUSBD511N1
lmages are for reference only.MUSBD511N1
CONN RCPT USB2.0 TYPEB 4POS PCB
Datasheet-
64,676 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Panel Mount, Through Hole
MUSBD511N1
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | MUSB |
| Packaging | Box |
| RoHS Status | RoHS Compliant |
| Connector Type | USB-B (USB TYPE-B) |
| Number of Contacts | 4 |
| Gender | Receptacle |
| Specifications | USB 2.0 |
| Mounting Type | Panel Mount, Through Hole |
| Mounting Feature | Flange, Vertical |
| Termination | Solder |
| Features | Board Lock, Cover |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 105°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 1.5A |
| Voltage - Rated | - |
| Mating Cycles | 1500 |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Copper Alloy |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | White |
| Base Product Number | MUSBD |
| Product Attribute |  |
 |
|
|
| Part Number | MUSBD51101 | MUSBD511N0 | MUSB-05-F-A-SM-A | MUSB-05-F-A-SM-A-R |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Samtec Inc. | Samtec Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN RCPT USB2.0 TYPEB 4POS PCB | CONN RCPT USB2.0 TYPEB 4POS PCB | MINI USB 2.0 INTERFACE | MINI USB 2.0 INTERFACE |
| Series | MUSB | MUSB | MUSB | MUSB |
| Packaging | Box | Box | Tray | Tray |
