MUSBR-4593-M0
lmages are for reference only.MUSBR-4593-M0
CONN RCPT USB3.0 A STACKED PCB
Datasheet-
89,736 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
USB-A (USB TYPE-A), Stacked USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 18 Position Panel Mount, Through Hole
MUSBR-4593-M0
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | MUSBR |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Connector Type | USB-A (USB TYPE-A), Stacked |
| Number of Contacts | 18 |
| Gender | Receptacle |
| Specifications | USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) |
| Mounting Type | Panel Mount, Through Hole |
| Mounting Feature | Flange, Vertical |
| Termination | Solder |
| Features | Board Guide |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 105°C |
| Number of Ports | 2 |
| Current Rating (Amps) | 0.25A, 1.8A |
| Voltage - Rated | - |
| Mating Cycles | - |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Blue |
| Base Product Number | MUSBR |
| Product Attribute |  |
 |
|
|

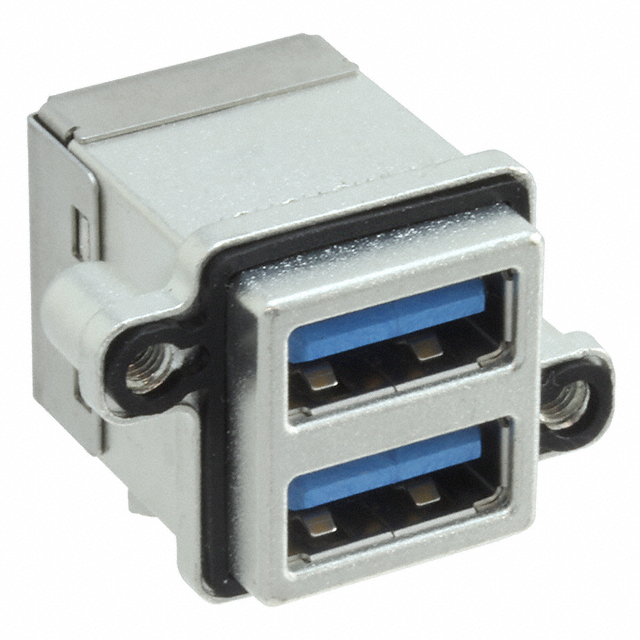

| Part Number | MUSBR-4193-M0 | MUSB-05-F-A-SM-A | MUSB-05-F-A-SM-A-R | MUSB-05-F-A-SM-A-R-TR |
| Manufacturer | Amphenol ICC (Commercial Products) | Samtec Inc. | Samtec Inc. | Samtec Inc. |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN RCPT USB3.0 A STACK PCB R/A | MINI USB 2.0 INTERFACE | MINI USB 2.0 INTERFACE | MINI USB 2.0 INTERFACE |
| Series | MUSBR | MUSB | MUSB | MUSB |
| Packaging | Bulk | Tray | Tray | Tape & Reel (TR) |
