MUX36S16IRTVR
lmages are for reference only.MUX36S16IRTVR
IC MUX 16:1 170OHM 32WQFN
Datasheet32-WFQFN Exposed Pad
60,930 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 Circuit IC Switch 16:1 170Ohm 32-WQFN (5x5)
MUX36S16IRTVR
| Category | Integrated Circuits (ICs) - Interface - Analog Switches-Multiplexers-Demultiplexers |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 170Ohm |
| Channel-to-Channel Matching (ΔRon) | 6Ohm (Typ) |
| Voltage - Supply, Single (V+) | 10V ~ 36V |
| Voltage - Supply, Dual (V±) | ±5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 136ns, 78ns |
| -3db Bandwidth | - |
| Charge Injection | 0.31pC |
| Channel Capacitance (CS(off), CD(off)) | 2.1pF, 11.1pF |
| Current - Leakage (IS(off)) (Max) | 40pA |
| Crosstalk | -100dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-WQFN (5x5) |
| Base Product Number | MUX36S16 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |

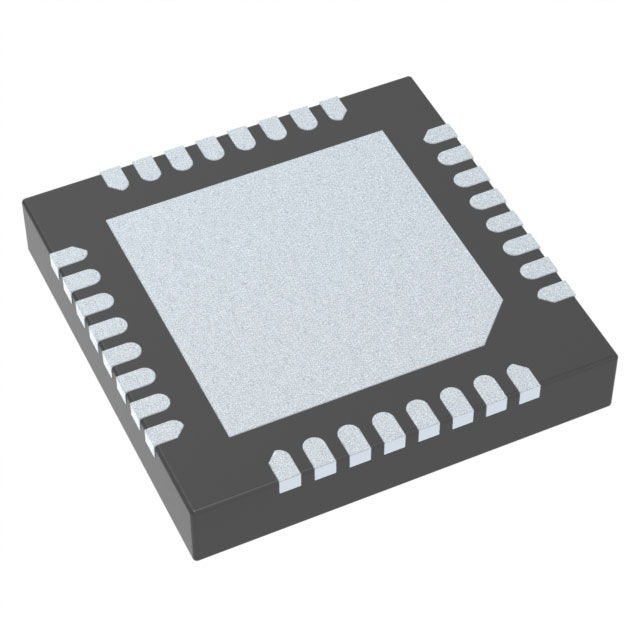

| Part Number | MUX36S16IRSNR | MUX36S16IRSNR | MUX36S16IRTVR | MUX36S16IDWR |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MUX 16:1 170OHM 32QFN | IC MUX 16:1 170OHM 32QFN | IC MUX 16:1 170OHM 32WQFN | IC MUX 16:1 170OHM 28SOIC |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
