Product CatalogPart Number
MVTM36BT030M040B00
Manufacturer
Vicor CorporationDescription
DC DC CONVERTER 3V 150W
Datasheet
DatasheetPackage
Module
In Stock
17,056 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MVTM36BT030M040B00
MVTM36BT030M040B00

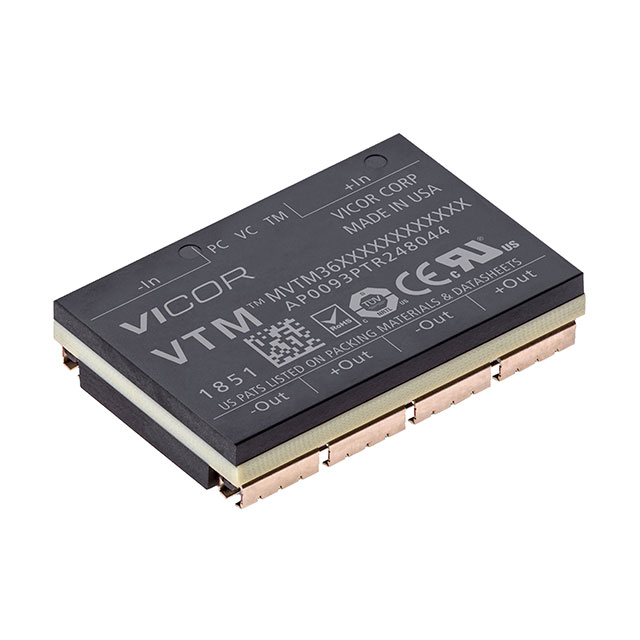

lmages are for reference only.Payment Methods
Delivery Services
Voltage Transformation Module DC DC Converter 1 Output 3V 40A 26V - 50V Input
Quick Inquiry
MVTM36BT030M040B00
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Vicor Corporation |
| Series | MVTM36 (150W) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Voltage Transformation Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 26V |
| Voltage - Input (Max) | 50V |
| Voltage - Output 1 | 3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 40A |
| Power (Watts) | 150 W |
| Applications | ITE (Commercial) |
| Features | OCP, OTP, OVP, SCP |
| Operating Temperature | -55°C ~ 125°C |
| Efficiency | 94% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Module |
| Size / Dimension | 1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | MVTM36 |
| Voltage - Isolation | 2.25 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | MVTM36BT015M080A00 | MVTM36BT045M027A00 | MVTM36BT060M020A00 | MVTM36BT072M017A00 |
| Manufacturer | Vicor Corporation | Vicor Corporation | Vicor Corporation | Vicor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 1.5V 150W | DC DC CONVERTER 4.5V 150W | DC DC CONVERTER 6V 150W | DC DC CONVERTER 7.2V 150W |
| Series | Vicor Corporation | Vicor Corporation | Vicor Corporation | Vicor Corporation |
| Packaging | Bulk | Bulk | Bulk | Bulk |
