Product CatalogPart Number
MW2G100MNN0816
Manufacturer
Chinsan (Elite)Description
CAP ALUM 10UF 20% 400V RADIAL TH
Datasheet
DatasheetPackage
Radial, Can
In Stock
86,772 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MW2G100MNN0816
MW2G100MNN0816
lmages are for reference only.Payment Methods
Delivery Services
10 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Quick Inquiry
MW2G100MNN0816
Specifications
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | MW |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 100 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

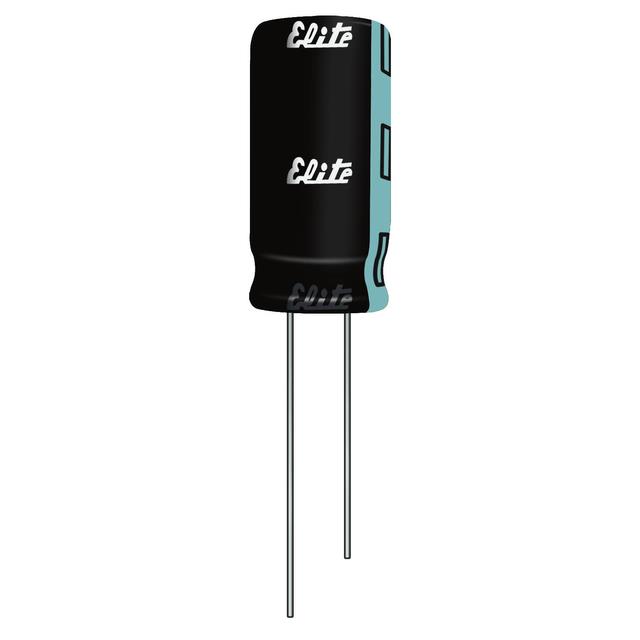

| Part Number | MW2G121MNN1635 | MW2G121MNN1825 | MW2G121MNN1830A6EF3 | MW2G151MNN1835 |
| Manufacturer | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 120UF 20% 400V RADIAL | CAP ALUM 120UF 20% 400V RADIAL | CAP ALUM 120UF 20% 400V RADIAL | CAP ALUM 150UF 20% 400V RADIAL |
| Series | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| Packaging | Bulk | Bulk | Bulk | Bulk |
