MW7IC3825GNR1

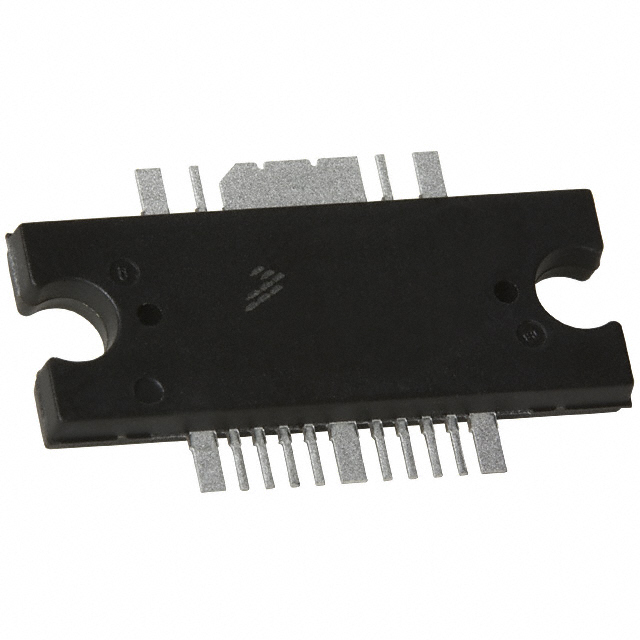

lmages are for reference only.MW7IC3825GNR1
IC AMP WIMAX 3.4GHZ-3.6GHZ TO270
DatasheetTO-270-16 Variant, Gull Wing
91,543 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Amplifier IC WiMax 3.4GHz ~ 3.6GHz TO-270 WBL-16 GULL
MW7IC3825GNR1
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | Freescale Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Frequency | 3.4GHz ~ 3.6GHz |
| P1dB | 44.8dBm |
| Gain | 25dB |
| Noise Figure | - |
| RF Type | WiMax |
| Voltage - Supply | 32V |
| Current - Supply | 230mA |
| Test Frequency | 3.6GHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-270-16 Variant, Gull Wing |
| Supplier Device Package | TO-270 WBL-16 GULL |
| Base Product Number | MW7IC |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

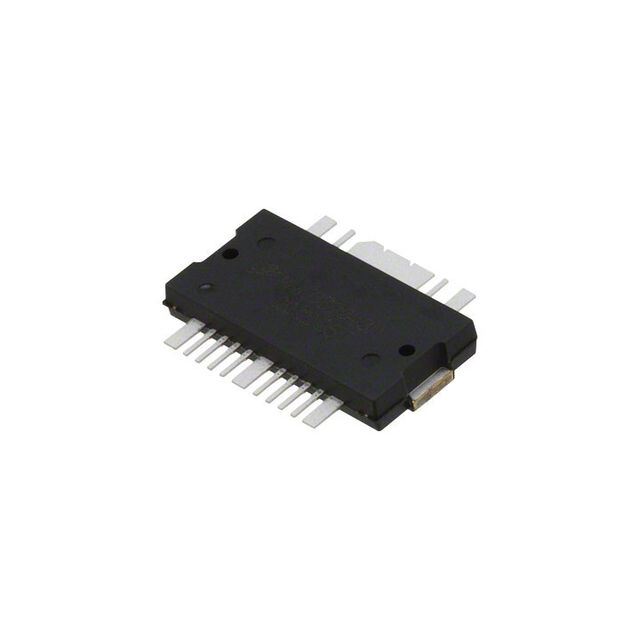

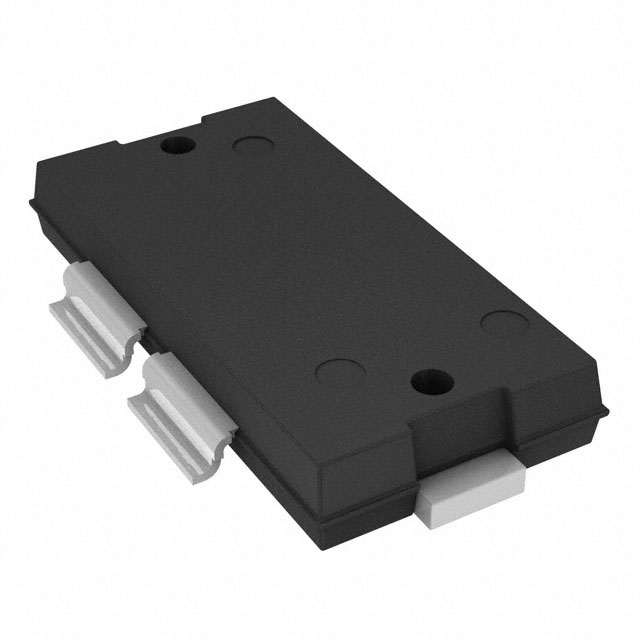

| Part Number | MW7IC3825NBR1 | MW7IC3825NR1 | MW7IC008NT1 | MW7IC18100GNR1 |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC AMP WIMAX 3.4-3.6GHZ TO272WB | IC AMP WIMAX 3.4GHZ-3.6GHZ TO270 | IC RF AMP GPS 100MHZ-1GHZ 24QFN | IC AMP GSM 1.805-2.05GHZ TO270 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
