MWLA1265S-220MT

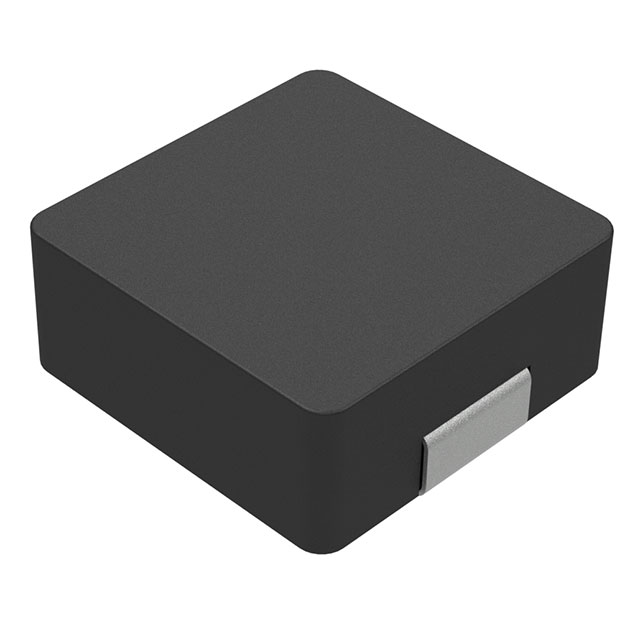

lmages are for reference only.MWLA1265S-220MT
FIXED IND 22UH 37MOHM 12000MA
DatasheetNonstandard
25,235 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 µH Shielded Drum Core, Wirewound Inductor 9 A 37mOhm Max Nonstandard
MWLA1265S-220MT
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. |
| Series | MWLA-S |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9 A |
| Current - Saturation (Isat) | 12A |
| Shielding | Shielded |
| DC Resistance (DCR) | 37mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.496" W (13.50mm x 12.60mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Base Product Number | MWLA1265S |
| Product Attribute |  |
 |
 |
 |
| Part Number | MWLA1265S-100MT | MWLA1265S-150MT | MWLA1265S-1R0MT | MWLA1265S-1R5MT |
| Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. |
| RoHS Status | ||||
| Description | FIXED IND 10UH 16.5MOHM 15500MA | FIXED IND 15UH 28MOHM 13000MA | FIXED IND 1UH 2.3MOHM 48000MA | FIXED IND 1.5UH 3MOHM 45000MA |
| Series | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
