Product CatalogPart Number
MX23A36NF1
Manufacturer
JAE ElectronicsDescription
CONN HEADER R/A 36POS 2.5MM
Datasheet
DatasheetPackage
-
In Stock
58,169 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MX23A36NF1
MX23A36NF1
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole, Right Angle 36 position 0.098" (2.50mm)
Quick Inquiry
MX23A36NF1
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | JAE Electronics |
| Series | MX23A |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 36 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.173" (4.40mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.122" (3.10mm) |
| Overall Contact Length | - |
| Insulation Height | 0.720" (18.30mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Guide |
| Operating Temperature | -40°C ~ 125°C |
| Ingress Protection | Waterproof |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | Automotive |
| Base Product Number | MX23A36N |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | MX23A36NF6 | MX23A12NF1 | MX23A12NF3 | MX23A18NF1 |
| Manufacturer | JAE Electronics | JAE Electronics | JAE Electronics | JAE Electronics |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | CONN HEADER R/A 36POS 2.5MM | CONN HEADER R/A 12POS 2.5MM | CONN HEADER R/A 12POS 2.5MM | CONN HEADER R/A 18POS 2.5MM |
| Series | MX23A | MX23A | MX23A | MX23A |
| Packaging | Bulk | Tray | Bulk | Tray |
Customers Also Interested in
Recommended Products
MX23A12NF1
JAE Electronics
MX23A12NF3
JAE Electronics
MX23A18NF1
JAE Electronics

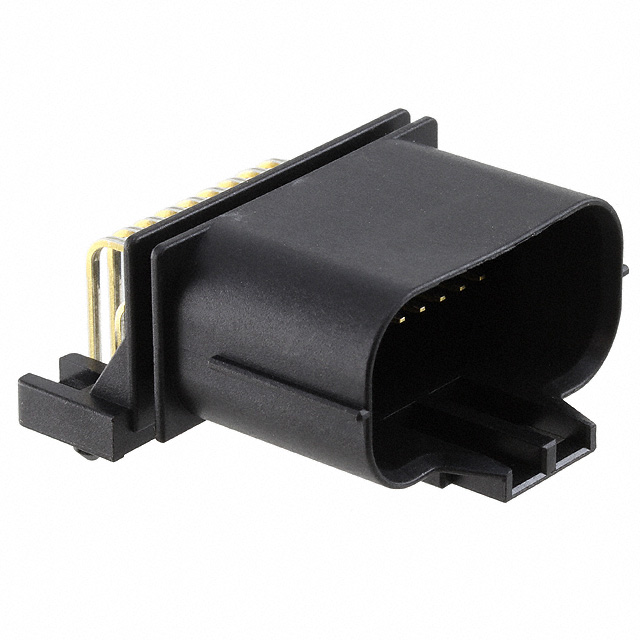

MX23A18NF2
JAE Electronics
MX23A18NF3
JAE Electronics
MX23A18NFG
JAE Electronics
MX23A26NF1
JAE Electronics
MX23A26NF2
JAE Electronics
MX23A26NF3
JAE Electronics
MX23A26NF5
JAE Electronics
MX23A34NF1
JAE Electronics
MX23A34NF2
JAE Electronics
MX23A34NF3
JAE Electronics
MX23A34NF5
JAE Electronics

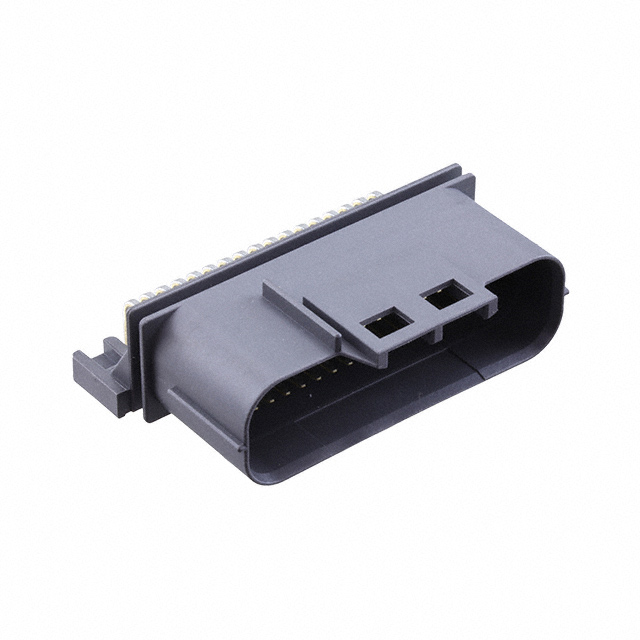

MX23A34NF6
