FLASH - NOR (SLC) Memory IC 16Mbit SPI - Quad I/O 133 MHz 6 ns 8-SOP
MX25U16356M1I02
| Category | Integrated Circuits (ICs) - Memory - Memory |
| Manufacturer | Macronix |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NOR (SLC) |
| Memory Size | 16Mbit |
| Memory Organization | 2M x 8 |
| Memory Interface | SPI - Quad I/O |
| Clock Frequency | 133 MHz |
| Write Cycle Time - Word, Page | 350µs, 3ms |
| Voltage - Supply | 1.65V ~ 2V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
| Base Product Number | - |
| Access Time | 6 ns |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

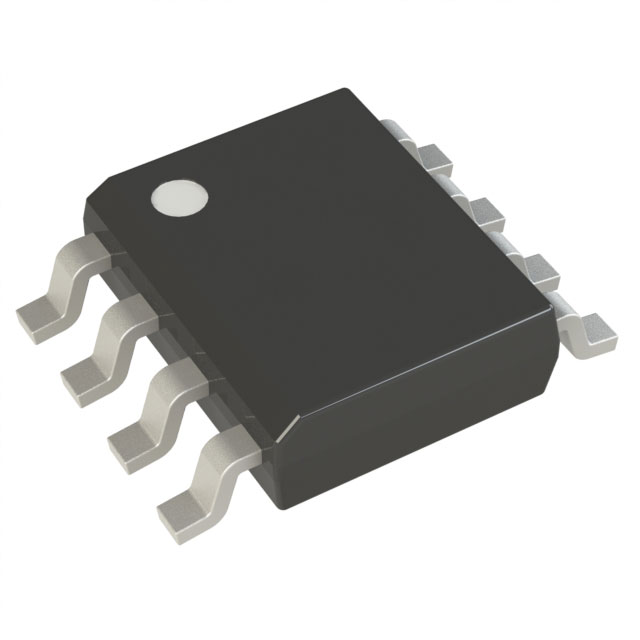

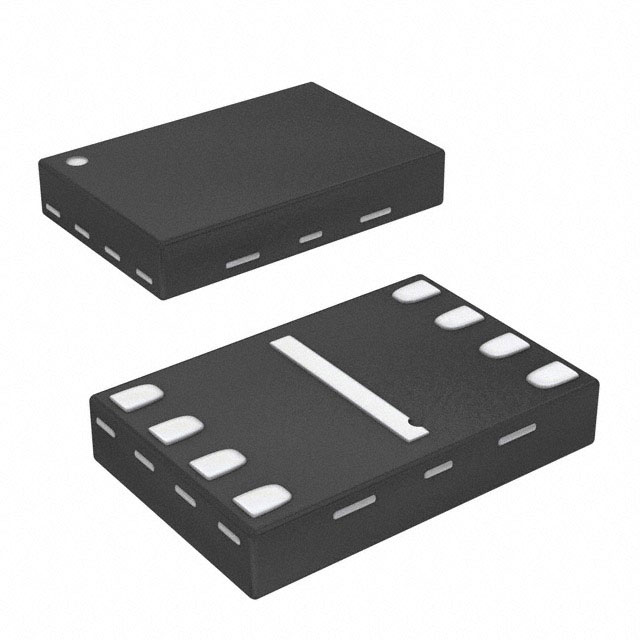

| Part Number | MX25U16356M2I02 | MX25U16356ZNI02 | MX25U16356ZUI02 | MX25U1635EM1I-10G |
| Manufacturer | Macronix | Macronix | Macronix | Macronix |
| RoHS Status | ROHS3 Compliant | |||
| Description | IC FLASH 16MBIT SPI/QUAD 8SOP | IC FLASH 16MBIT SPI/QUAD 8WSON | IC FLASH 16MBIT SPI/QUAD 8USON | IC FLASH 16MBIT SPI/QUAD 8SOP |
| Series | Macronix | Macronix | Macronix | Macronix |
| Packaging | Tube | Tray | Tape & Reel (TR) | Tube |
