MXL83212E-ADA-R
lmages are for reference only.MXL83212E-ADA-R
HIGH PERFORMANCE, HALF-DUPLEX RS
Datasheet8-SOIC (0.154", 3.90mm Width)
26,466 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1/1 Transceiver Half RS422, RS485 8-SOIC
MXL83212E-ADA-R
| Category | Integrated Circuits (ICs) - Interface - Drivers-Receivers-Transceivers |
| Manufacturer | MaxLinear, Inc. |
| Series | MxL8321x |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Transceiver |
| Protocol | RS422, RS485 |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 30 mV |
| Data Rate | 500kbps |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

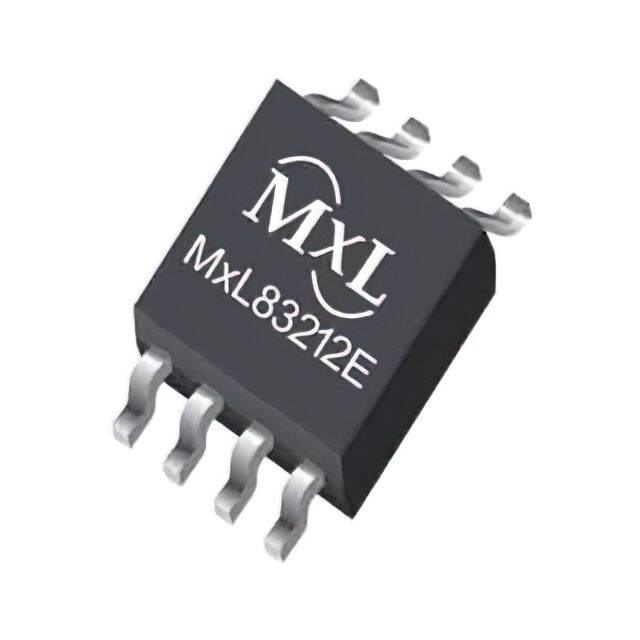

| Part Number | MXL83212E-AHA-R | MXL83212E-ARA-R | MXL83101E-ADA-R | MXL83102E-ADA-R |
| Manufacturer | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. |
| RoHS Status | ROHS3 Compliant | |||
| Description | HIGH PERFORMANCE, HALF-DUPLEX RS | HIGH PERFORMANCE, HALF-DUPLEX RS | IC TRANSCEIVER HALF 1/1 8SOIC | IC TRANSCEIVER HALF 1/1 8SOIC |
| Series | MxL8321x | MxL8321x | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
