MXO45HST-2C-38M000000

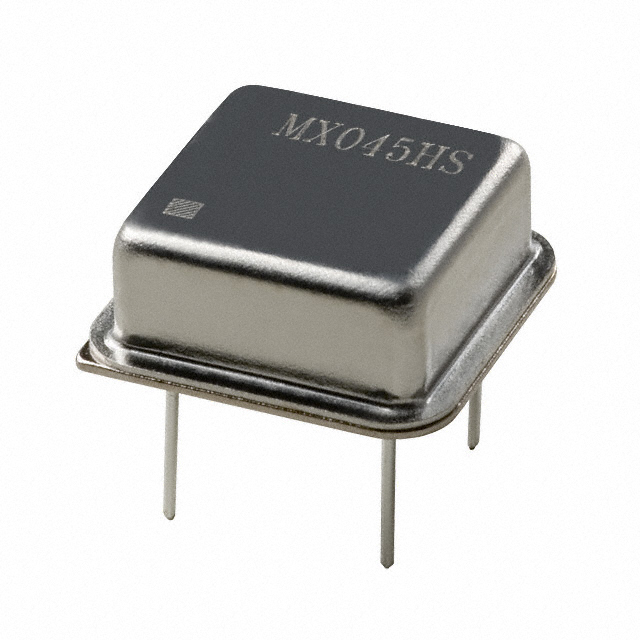

lmages are for reference only.MXO45HST-2C-38M000000
XTAL OSC XO 38.0000MHZ HCMOS TH
Datasheet8-DIP, 4 Leads (Half Size, Metal Can)
94,071 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
38 MHz XO (Standard) HCMOS, TTL Oscillator 5V Enable/Disable 8-DIP, 4 Leads (Half Size, Metal Can)
MXO45HST-2C-38M000000
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | CTS-Frequency Controls |
| Series | MXO45HXT |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 38 MHz |
| Function | Enable/Disable |
| Output | HCMOS, TTL |
| Voltage - Supply | 5V |
| Frequency Stability | ±100ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 40mA |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP, 4 Leads (Half Size, Metal Can) |
| Size / Dimension | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | MXO45HST-2C-10M000000 | MXO45HST-2C-11M059200 | MXO45HST-2C-12M000000 | MXO45HST-2C-12M000000 |
| Manufacturer | CTS-Frequency Controls | CTS-Frequency Controls | CTS-Frequency Controls | CTS-Frequency Controls |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC XO 10.0000MHZ HCMOS TH | XTAL OSC XO 11.0592MHZ HCMOS TH | XTAL OSC XO 12.0000MHZ HCMOS TH | XTAL OSC XO 12.0000MHZ HCMOS TH |
| Series | CTS-Frequency Controls | CTS-Frequency Controls | CTS-Frequency Controls | CTS-Frequency Controls |
| Packaging | Tray | Tray | Tray | Tray |
