Product CatalogPart Number
MXSMBJ2K3.3E3
Manufacturer
Microsemi CorporationDescription
TVS DIODE 3.3VWM 5.8VC SMBJ
Datasheet
DatasheetPackage
DO-214AA, SMB
In Stock
96,487 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MXSMBJ2K3.3E3
MXSMBJ2K3.3E3
lmages are for reference only.Payment Methods
Delivery Services
5.8V Clamp 10A (8/20µs) Ipp Tvs Diode Surface Mount DO-214AA (SMBJ)
Quick Inquiry
MXSMBJ2K3.3E3
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microsemi Corporation |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 3.3V |
| Voltage - Breakdown (Min) | 4.6V |
| Voltage - Clamping (Max) @ Ipp | 5.8V |
| Current - Peak Pulse (10/1000µs) | 10A (8/20µs) |
| Power - Peak Pulse | 2000W (2kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMBJ) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | MXSMBJ2K3.3 | MXSMBJ2K4.0 | MXSMBJ2K4.5 | MXSMBJ2K5.0 |
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | TVS DIODE 3.3VWM 5.8VC SMBJ | TVS DIODE 4VWM 6.3VC SMBJ | TVS DIODE 4.5VWM 6.6VC SMBJ | TVS DIODE 5VWM 7.6VC SMBJ |
| Series | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
MXSMBG10A/TR
Microchip Technology
MXSMBG10AE3
Microchip Technology

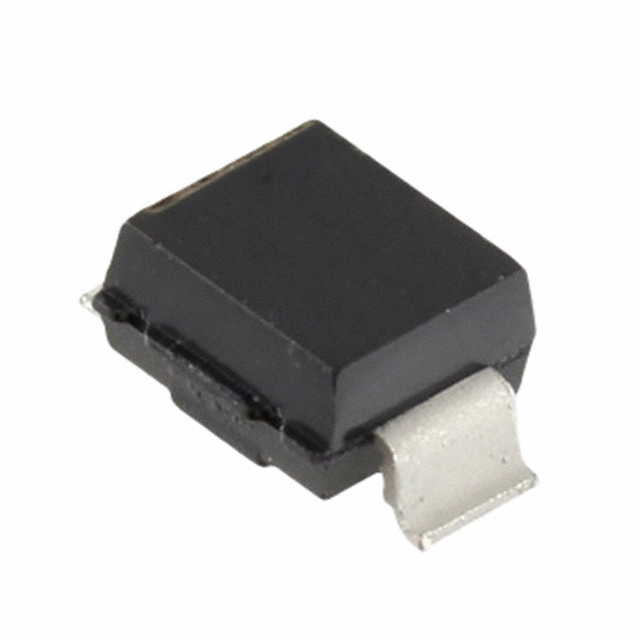

MXSMBG10CA
